Mounting and Wiring Notes

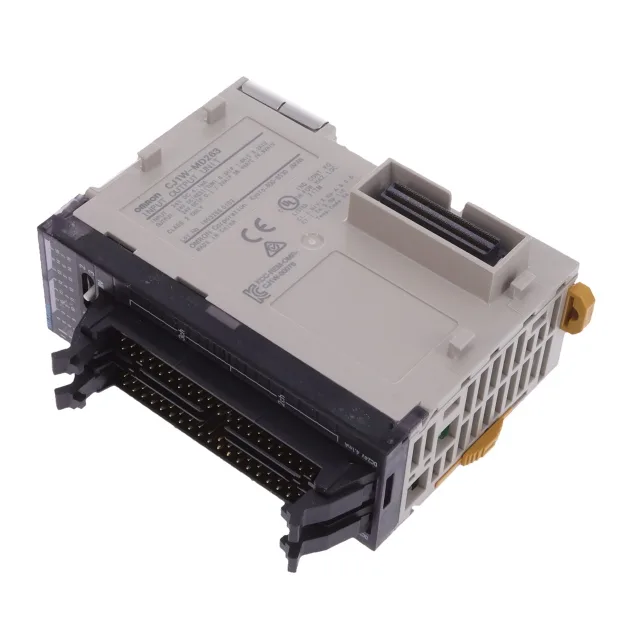

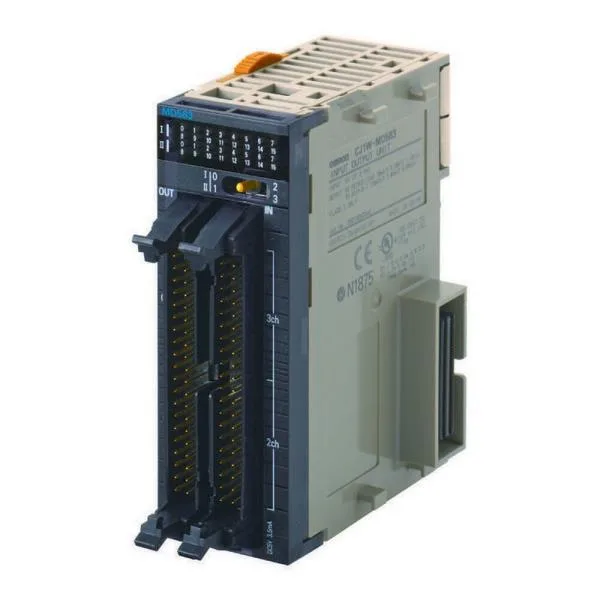

The CJ1W-MD263: DIN-rail mount, same 90mm depth as other CJ1W modules. The rectangular connector mates with the CJ-series backplane; no special tooling needed. Wiring to field devices is via the front connector (screw or spring-clamp depending on accessory terminal block, not included). The solid-state outputs switch faster than relays and have no moving parts — good for high-cycle applications like rapid valve positioning or pump sequencing. Just watch the total current per output bank if you're paralleling outputs; the module's internal sink limit governs.
