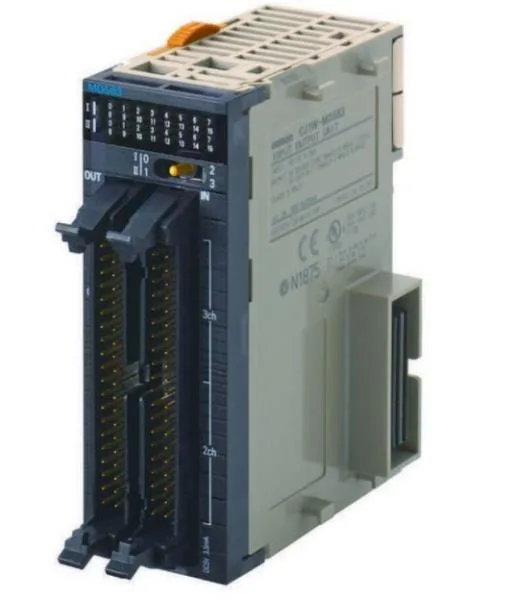

Omron CJ1W-MD563 I/O module, 32 digital inputs and 32 solid state outputs, DIN rail mount, rectangular connector, CE, cULus, NK approved.
| Parameter | Value |
|---|---|
| Series | CJ1W |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 32 - Digital |
| Outputs (count and type) | 32 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.243 lb (110.22 g) |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, NK |
| Parameter | Value |
|---|---|
| Type | Input, Output (I/O) Module |
The CJ1W-MD563: 32-point mixed I/O module for Omron CJ-series PLCs, combining 32 digital inputs and 32 solid-state outputs on a single module. Mounts on DIN rail and connects via a rectangular connector. Rated for CE, cULus, and NK (marine) certified systems.
Snaps onto a DIN rail within a CJ-series CPU rack or expansion backplane. The rectangular connector accepts a pre-wired I/O cable; confirm cable part number matches your panel layout. Module is addressed automatically by the rack position.
It is an Input, Output (I/O) Module, listed as a mixed digital I/O module.
It belongs to Omron's CJ1W series, designed for use with CJ-series PLCs.
No. The CJ1W-MD261 uses a D-Sub connector while CJ1W-MD563 uses a rectangular connector, so the wiring harness is not compatible.
It is approved for CE (European), cULus (U.S./Canada), and NK (Japanese marine) standards.
