Omron CJ1W-NC413 — PLCs (Programmable Logic Controllers)

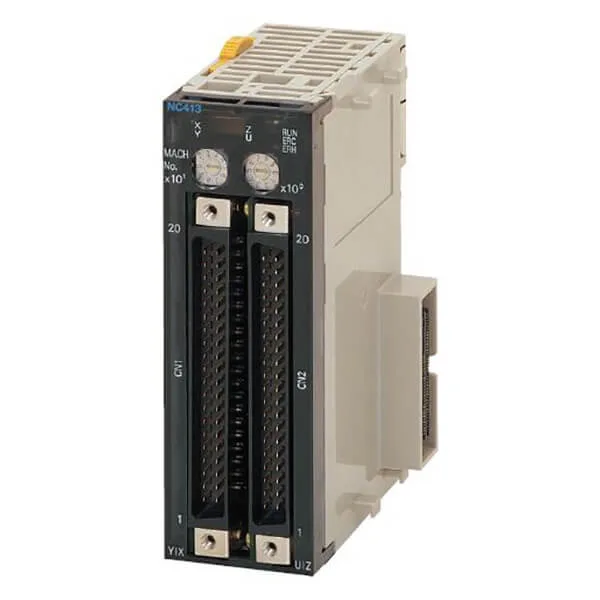

Omron CJ1W-NC413 Motion Control Module, 4-Axis, 24VDC

MPNCJ1W-NC413
End of Life

Omron CJ1W Series, Motion Control Module, 4-Axis Control, 24VDC, DIN Rail, CE, cULus.

$1,229.00 – $2,313.76Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CJ1W-NC413 — Identification
ParameterValue
SeriesCJ1W
CJ1W-NC413 — Electrical
ParameterValue
Supply voltage24VDC
CJ1W-NC413 — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CJ1W-NC413 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.331 lb (150.14 g)
Termination styleRectangular Connector
CJ1W-NC413 — Approvals
ParameterValue
Approvals / certificationsCE, cULus
CJ1W-NC413 — Other specifications
ParameterValue
TypeMotion Control Module
Features4-Axis Control

Product details

Module Overview

The Omron CJ1W-NC413 is a 4-axis motion control module from the CJ1W series, designed for use with CJ Series PLCs. It operates on a 24 VDC supply, mounts on DIN rail, and uses a rectangular connector interface.

Integration Notes

Rated for operation from 0°C to 55°C. CE and cULus approved. Termination via rectangular connector, which matches the CJ Series backplane interface. Verify the PLC backplane power budget before adding the module; consult the CJ1W system manual for slot current limits.

Frequently asked questions

What are the key approvals for the CJ1W-NC413?

It carries CE and cULus approvals.

What is the supply voltage and mounting method?

The module requires 24 VDC and mounts on DIN rail.

How many axes does the CJ1W-NC413 control?

It controls 4 axes.
