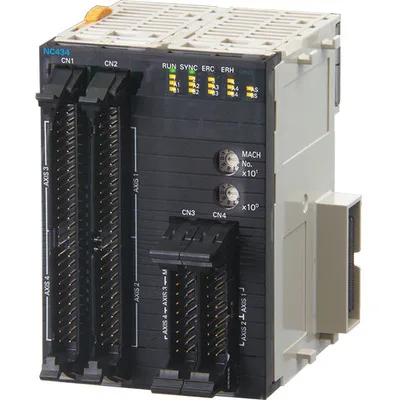

Omron CJ1W-NC434, Motion Control Module, Series CJ1W, 4-Axis Control, 24VDC Supply, DIN Rail Mount, Rectangular Connector, CE, cULus.
| Parameter | Value |
|---|---|
| Series | CJ1W |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.485 lb (219.99 g) |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus |
| Parameter | Value |
|---|---|
| Type | Motion Control Module |
| Features | 4-Axis Control |
The CJ1W-NC434: 4-axis motion control module that rides the CJ Series backplane. Requires 24VDC from the rack power supply or an external source. Termination is a rectangular connector — pull the pinout from the manual before landing wires. DIN rail mounted, same profile as adjacent CJ1W I/O.
CE and cULus approved for panel installations. Operating range 0°C to 55°C covers most industrial enclosures without derating.
CE and cULus, as listed in the approvals.
