Omron CJ1W-NCF71

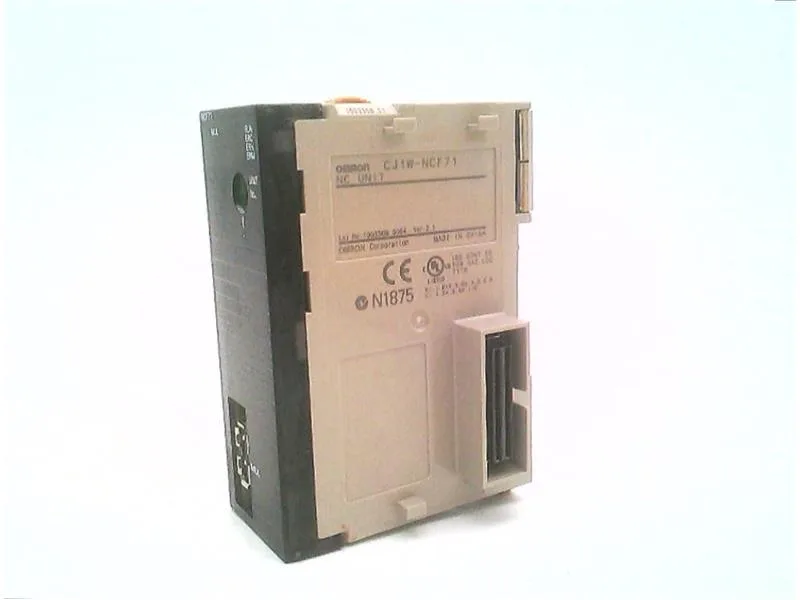

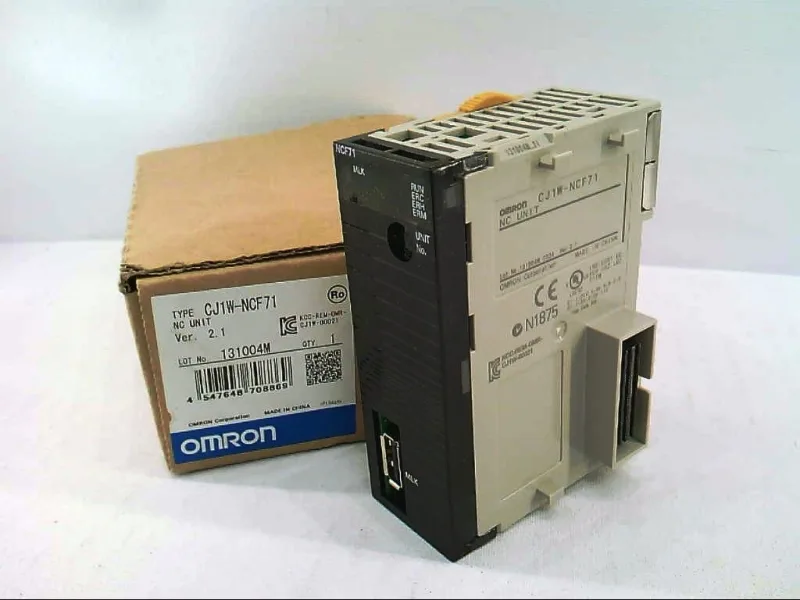

Omron CJ1W-NCF71 Motion Control Module, 16-Axis Control

MPN CJ1W-NCF71
End of Life

Omron CJ1W, Motion Control Module, 16-Axis Control, DIN Rail Mount, USB Termination, CE/cULus/C-tick, 0°C to 55°C.

$2,866.19 – $2,980.26 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CJ1W-NCF71 specifications
ParameterValue
SeriesCJ1 W
Product typeMotion Control Module
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.209 lb (94.8 g)
PackageBulk

Product details

The Omron CJ1W-NCF71 is a motion control module for the CJ Series PLC platform, handling up to 16 axes of servo or stepper control. The module accepts a USB connection for setup and monitoring—no serial port on the face, so a USB cable is the expected link to CX-Motion or Sysmac Studio.

What the 16-axis rating means for selection

A 16-axis controller means this module can independently coordinate motion on up to 16 servo or stepper axes without burdening the CPU rack with pulsed output modules or separate motion cards. Each axis is managed via a dedicated pulse train or analogue command from the CJ1W-NCF71, so it replaces a stack of position controllers for multi-axis machinery—assembly stations, packaging cut-offs, or gantry pick-and-place that need synchronized moves.

CE, cULus, and C-tick marks cover the module for use in CE-marked EU machinery, UL-compliant North American panels, and Australian installations. No RoHS or REACH certificate appears in this listing, but those are typically included in the shipment documentation for current-production Omron parts.

MPN
CJ1W-NCF71
