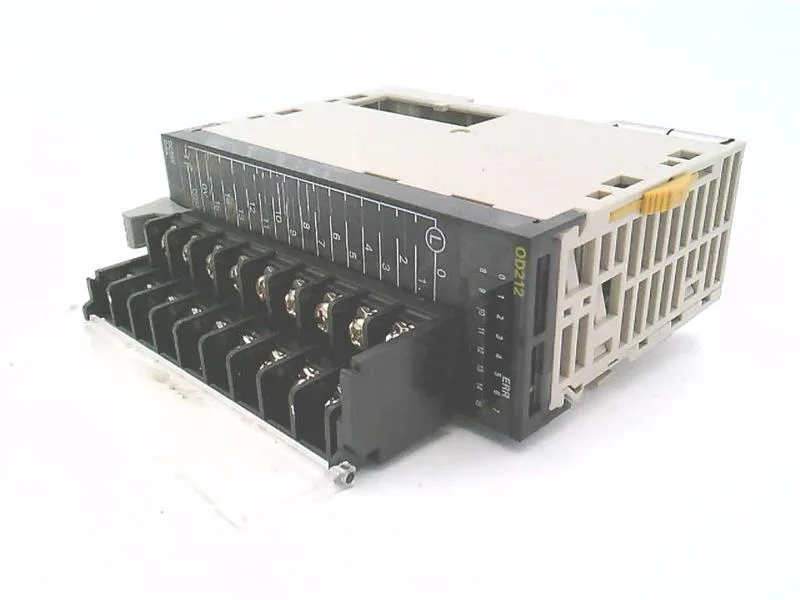

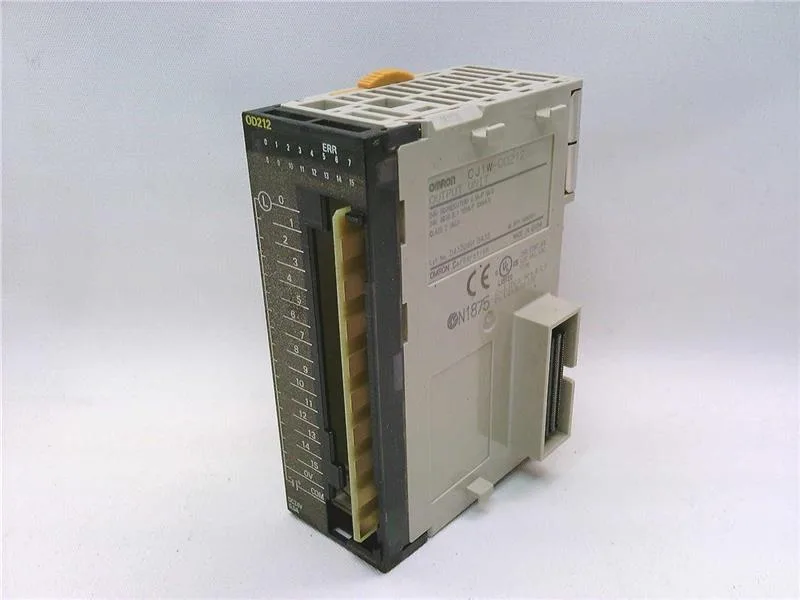

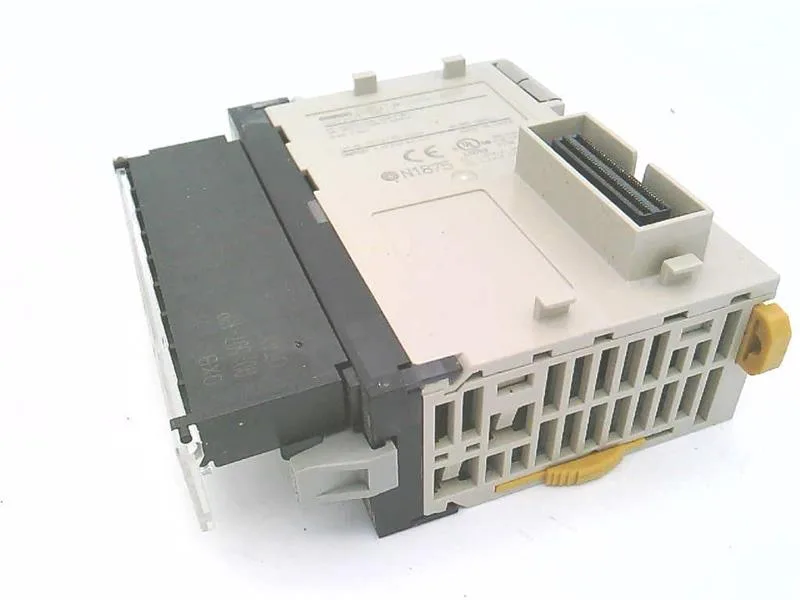

Omron CJ1W-OD212 digital output unit, 16 solid-state outputs, screw terminal, DIN rail mount, for CJ Series PLCs.
| Parameter | Value |
|---|---|
| Series | CJ1W |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 16 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.265 lb (120.2 g) |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Output Module |
The Omron CJ1W-OD212 is a 16-point solid-state output module for the CJ Series PLC platform.
Screw-terminal wiring keeps field termination simple with no special tooling — standard ferrule or bare wire lands on the clamp. The module carries CE, cULus, Lloyd, and NK approvals, so it passes inspection for industrial control panels and marine-class installations.
The CJ1W-OD212 is designed for the CJ Series, which includes CJ2M CPUs. It mounts on the same backplane and communicates over the CJ-series I/O bus. Confirm the rack slot allocation and power budget in your CJ2M configuration.
CE, cULus, Lloyd, and NK — covering industrial control panels and marine-class installations.
