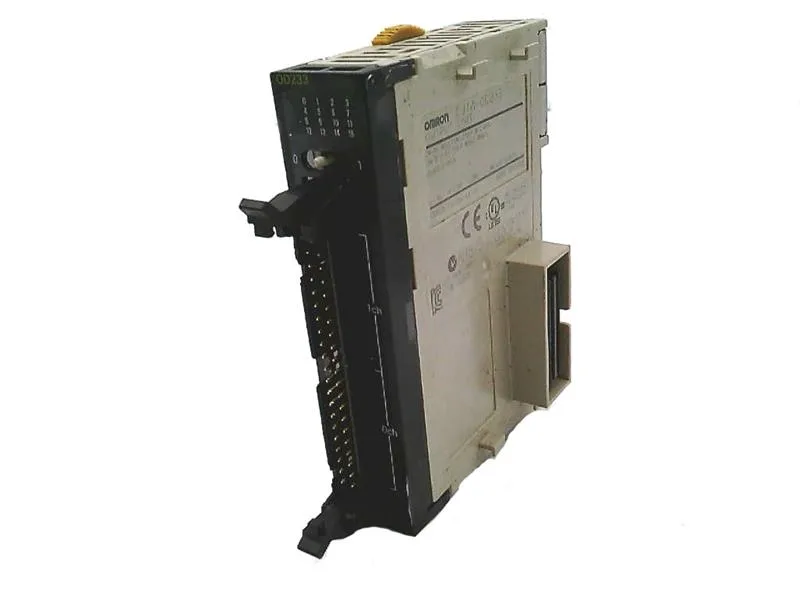

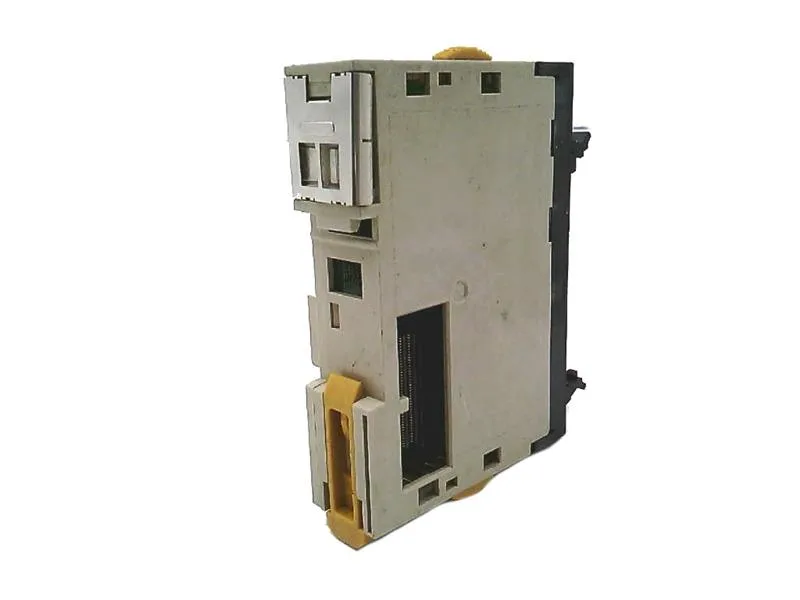

The Omron CJ1W-OD233 is a 32-point solid-state output module for the CJ1 PLC series. The 32 outputs are solid-state (no relay coils to burn or replace), so it suits high-speed switching or duty where mechanical wear is unacceptable. Approvals include CE, cULus, Lloyd, and NK — the last two important if the panel goes into marine or offshore applications.
Omron CJ1W-OD233 Output Module, 32 Solid State
MPNCJ1W-OD233
End of Life
Omron CJ1W Series Output Module, CJ1W-OD233, 32 Solid State Outputs, DIN Rail Mount, Rectangular Connector.
$244.00 – $628.94Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CJ1W |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 32 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.154 lb (69.85 g) |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Output Module |
Product details
Frequently asked questions
Will the CJ1W-OD233 drop into a panel built for a CP1W-32ET?
No, the CJ1W-OD233 uses a rectangular connector, while the CP1W-32ET uses screw terminals. The wiring harness and backplane connection differ; a direct swap without rewiring is not possible.
What compliance approvals does the CJ1W-OD233 carry?
The module carries CE, cULus, Lloyd Register, and NK (Nippon Kaiji Kyokai) approvals. These cover European, North American, and marine (Lloyd and NK) regulatory requirements.
How do I source the CJ1W-OD233?
Submit an RFQ for current pricing and lead time. The part is active and available through our distribution network; we quote to order.
MPN
CJ1W-OD233
