Terminal layout: screw terminals for AC input and 5 VDC output labelled +V and COM. No external fan needed over the 0–55°C ambient range. The display shows output voltage and current status. Approvals include CE, cULus, Lloyd, and NK.

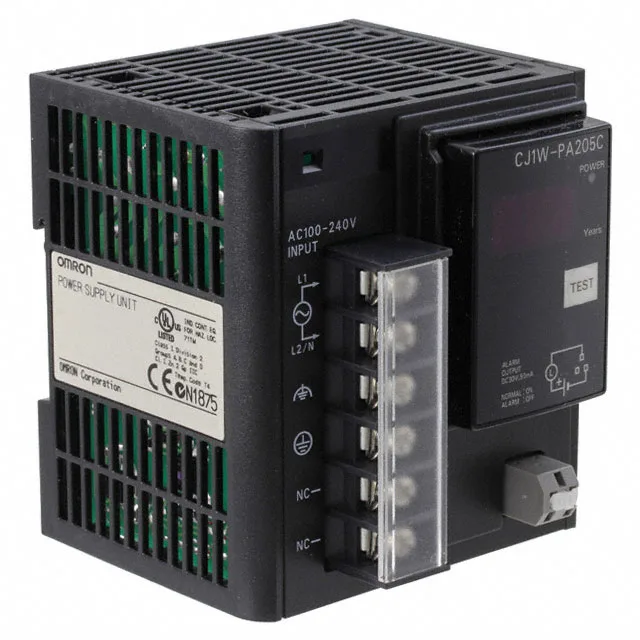

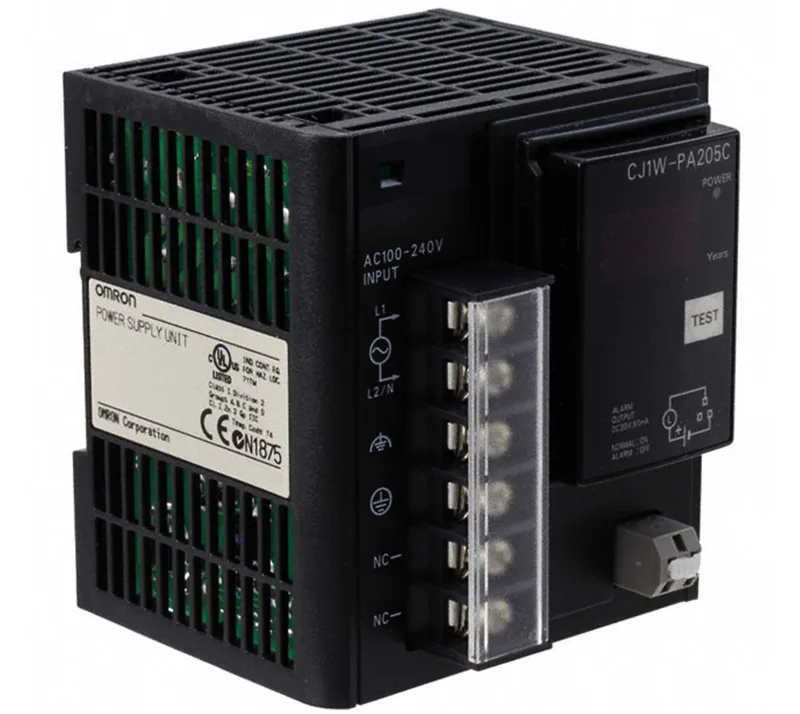

Omron CJ1W-PA205C Power Supply Module, 5VDC 5A
MPNCJ1W-PA205C
End of Life
Omron CJ1W Series Power Supply Module, CJ1W-PA205C, 100-240VAC Input, 5VDC 5A 25W Output, DIN Rail, CE/cULus/Lloyd/NK.
$385.53 – $437.23Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CJ1W |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 11 lbs (5 kg) |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Power Supply Module |
| Features | Display, Output Capacity (5VDC, 5A, 25W) |
Product details
Frequently asked questions
What is the closest functional second-source to the CJ1W-PA205C?
The CJ1W-PA205R is functionally identical — same output capacity (5 VDC, 5 A, 25 W), same approvals (CE, cULus, Lloyd, NK), same input range (100–240 VAC). It can be used as a direct replacement without rewiring.
What compliance documentation does Omron provide for the CJ1W-PA205C?
The module carries approvals from CE, cULus, Lloyd's Register (marine), and NK (Nippon Kaiji Kyokai). Typical compliance documents include the CE declaration of conformity, UL/cULus listing, and Lloyd's / NK type approval certificates. These are available from the manufacturer or distributor upon request.
Will the CJ1W-PA205C drop into a panel wired for the CJ1W-PA205R?
Yes, it is a direct functional swap. Both modules share the same form factor, DIN rail mounting, screw terminal layout, and electrical ratings (5 VDC, 5 A, 25 W). No rewiring is required.
