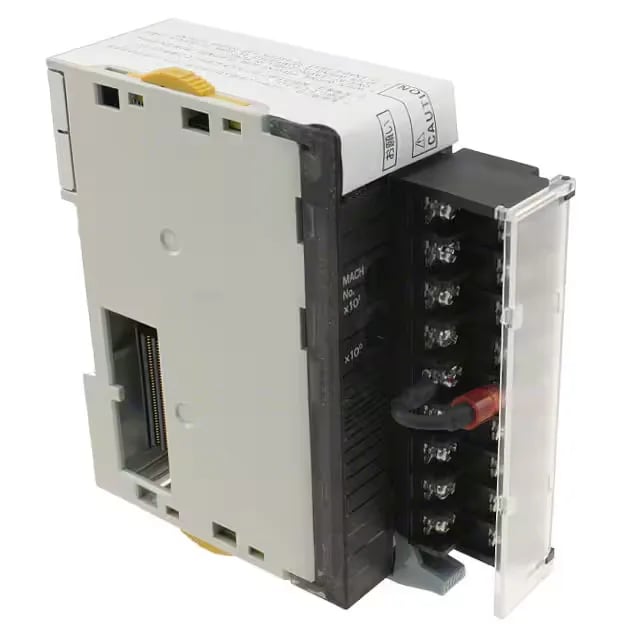

Omron CJ1W-PH41U

Omron CJ1W-PH41U Analog I/O, 4 ch, 2 MOS FET, EOL

MPN CJ1W-PH41U
End of Life

Omron CJ1W-PH41U, CJ-series analog I/O unit for CJ2H/CJ2M PLCs, 4 analog inputs (voltage, current, T/C, RTD), 2 MOS FET relay outputs, accuracy 0.0005 at 25 °C, screw terminal, lifecycle stage end-of-life.

$1,030.35 – $1,988.64 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Product details

The CJ1W-PH41U is a CJ-series analog I/O unit for CJ2H/CJ2M PLCs, carrying 4 analog inputs alongside 2 MOS FET relay outputs on a screw terminal block. It accepts voltage, current, T/C, and RTD signals across 4 inputs, letting one slot cover a mixed temperature and process panel without extra signal conditioning.

Lifecycle: this is the line that matters

The CJ1W-PH41U is flagged at lifecycle stage eol_hot, which is the only thing that should drive the procurement decision for a line-down or new-build spec today.

What to verify before you write the PO

For the field-side wiring, the I/O and relay terminations land on screw terminals, so strip length and torque follow the standard Phoenix-style cage practice used across the CJ I/O family — worth a quick check against the panel's existing terminal marking before the wireman commits to gland plate cutouts. The 2 MOS FET outputs are solid-state, not mechanical relays, so they switch quietly and have no contact bounce, but they also do not carry the inrush of a mechanical contactor output — any plan to drive a solenoid or lamp load directly should be re-checked against the MOS FET output's on-state rating before sign-off.

MPN
CJ1W-PH41U
