Omron CJ1W-PTS15 — PLCs (Programmable Logic Controllers)

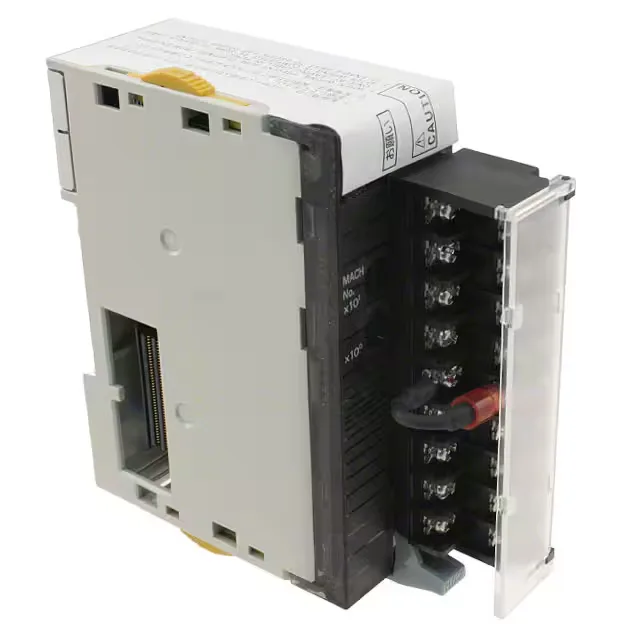

Omron CJ1W-PTS15 Input Module, 2 Analog – Active

MPNCJ1W-PTS15
End of Life

Omron CJ1W Series Input Module, CJ1W-PTS15, 2 analog inputs, DIN rail mount, screw terminal, CE, cULus.

$695.96 – $1,251.71Ref. price · indicative, final on quote
Omron CJ1W-PTS15 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CJ1W-PTS15 — Identification
ParameterValue
SeriesCJ1W
CJ1W-PTS15 — I/O
ParameterValue
Inputs (count and type)2 - Analog
CJ1W-PTS15 — Environmental
ParameterValue
Operating temperature range0°C~55°C
CJ1W-PTS15 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.331 lb (150.14 g)
Termination styleScrew Terminal
CJ1W-PTS15 — Approvals
ParameterValue
Approvals / certificationsCE, cULus
CJ1W-PTS15 — Other specifications
ParameterValue
TypeInput Module

Product details

The Omron CJ1W-PTS15 is an input module for the CJ Series, providing 2 analog input channels to a CJ Series CPU rack. It mounts on DIN rail, uses screw terminals for field wiring, and carries CE and cULus approvals.

Integration Notes

The module occupies one slot on the CJ rack. Operating temperature range is 0–55°C. For panels originally wired for a CJ1W-TS561, the PTS15 will physically fit and electrically connect (same backplane, same slot size, same termination style). However, because the input channel count differs (2 vs 6), the I/O mapping and program logic must be reconfigured accordingly.

Frequently asked questions

Will the CJ1W-PTS15 drop into a panel built for the CJ1W-TS561?

Physically yes – same slot, same DIN rail mount, same screw terminal wiring. But the channel count difference (2 vs 6) means the PLC program and I/O mapping must be modified.

How many analog inputs does the CJ1W-PTS15 have?

Two analog input channels.

What is the mounting and termination style?

DIN rail mount with screw terminal field wiring.
