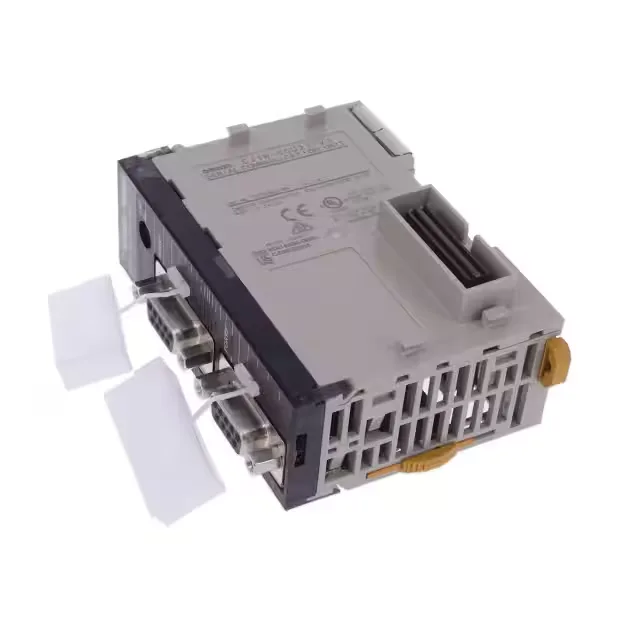

Omron CJ1W CJ1W-SCU21-V1 Serial Communications Unit, 19,200 bps max., 0.28 A switching current, DIN Rail, D-Sub, CE, cULus, Lloyd, NK, discontinued.
| Parameter | Value |
|---|---|
| Series | CJ1W |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Weight | 0.243 lb (110.22 g) |
| Termination style | D-Sub |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Communications Module |
The CJ1W-SCU21-V1 is a CJ Series Serial Communications Unit from Omron, providing a single serial port for Host Link or protocol macro communication. It mounts on a DIN rail, draws 0.28 A from the backplane, and is allocated 25 words in the CPU Bus Unit CIO Area for constant data exchange with the CPU.
Omron has discontinued the CJ1W-SCU21-V1.
