Omron CJ1W-TC002 — PLCs (Programmable Logic Controllers)

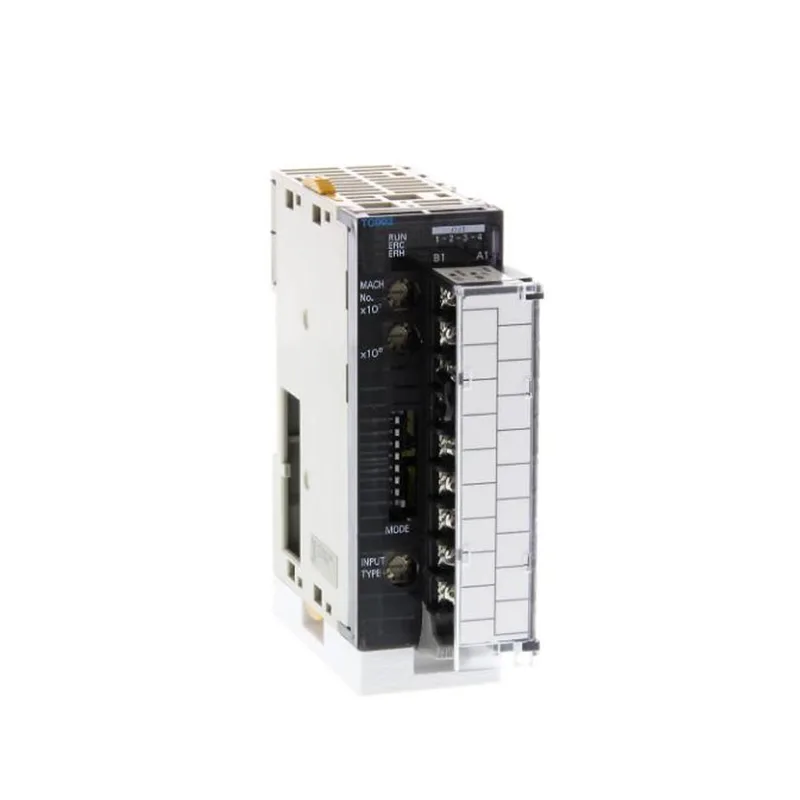

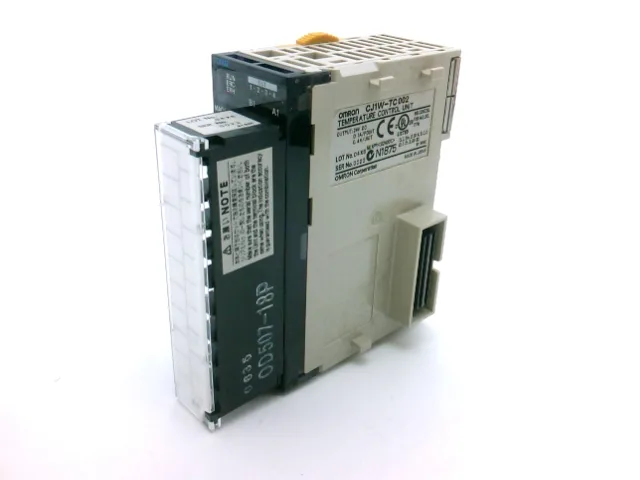

Omron CJ1W-TC002 Temperature Control Module, 4 Analog Inputs

MPNCJ1W-TC002
End of Life

Omron CJ1W Temperature Control Module, 4 Analog Inputs, 4 Solid State Outputs, Thermocouple Types B/J/K/L/R/S/T, DIN Rail Mount.

$586.49 – $1,127.08Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CJ1W-TC002 — Identification
ParameterValue
SeriesCJ1W
CJ1W-TC002 — I/O
ParameterValue
Inputs (count and type)4 - Analog
Outputs (count and type)4 - Solid State
CJ1W-TC002 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.331 lb (150.14 g)
Termination styleScrew Terminal
CJ1W-TC002 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CJ1W-TC002 — Other specifications
ParameterValue
TypeTemperature Control Module
FeaturesType B, J, K, L, R, S, T

Product details

Part and Function

The Omron CJ1W-TC002 is a Temperature Control Module for the CJ Series PLC platform. It gives you four analog inputs for thermocouples (types B, J, K, L, R, S, T) and four solid-state outputs – so four independent control loops in one slot. Mounts on a DIN rail, terminates via screw terminals. Approved to CE, cULus, Lloyd, and NK – covers most marine and industrial panel standards.

Slots into any CJ Series CPU rack or expansion rack. DIN-rail mounted, screw terminals accept standard thermocouple and output wiring. The four inputs are analog, so you're not limited to a single range – set the thermocouple type per channel in software. Approvals include Lloyd's and NK for marine applications – useful if the panel is going into a vessel or offshore installation.

Frequently asked questions

What is the functional difference between the CJ1W-TC002 and the CJ1W-TC004?

The TC004 has two analog inputs and two solid-state outputs, while the TC002 has four of each. Both use the same thermocouple types and form factor, but channel count differs.

What approvals does the CJ1W-TC002 carry?

CE, cULus, Lloyd, and NK – generally accepted for industrial and marine-rated panels.

MPN
CJ1W-TC002
