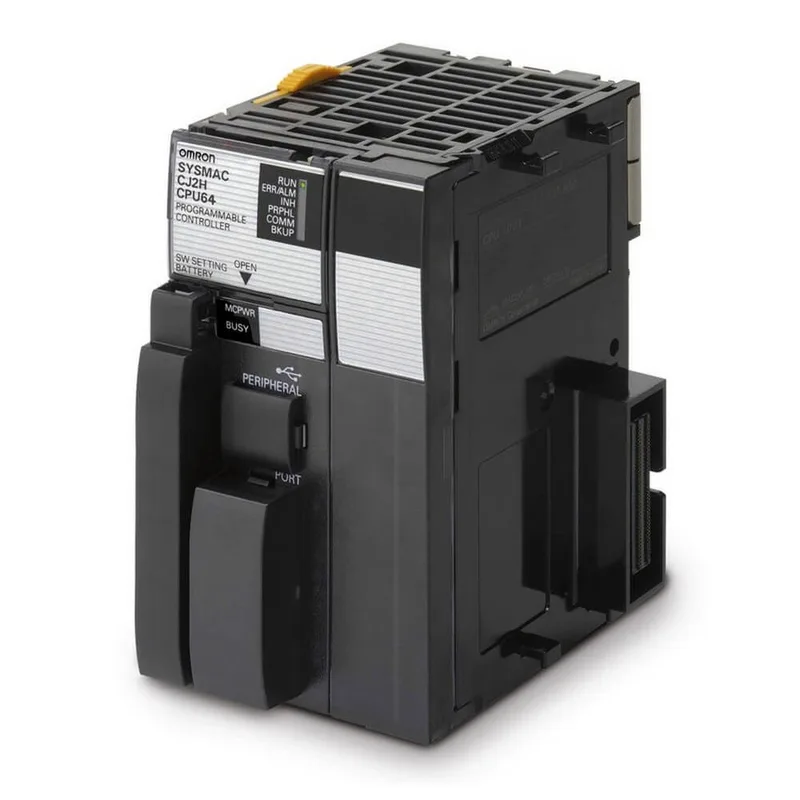

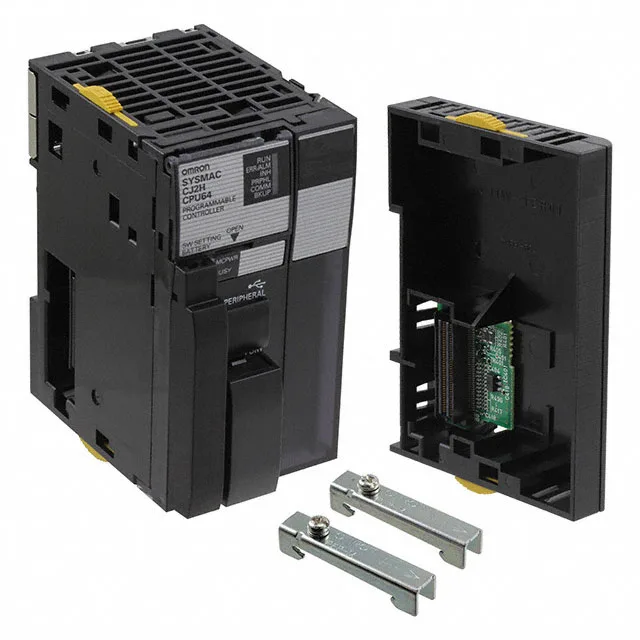

Omron CJ2H-CPU64

Omron CJ2H-CPU64 PLC, 160K Words, 40 Modules, Active

MPN CJ2H-CPU64
Active

Omron CJ2H-CPU64 PLC, CJ2H series, 160K Words memory, expandable 40 modules (3 racks), RS-232C, USB, DIN rail mount, CE, cULus, Lloyd, NK approved.

$2,117.85 – $3,906.85 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CJ2H-CPU64 specifications
ParameterValue
SeriesCJ2 H
Display typeNo Display
ProtocolRS-232C, USB
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.419 lb (190.06 g)
PackageBox

Product details

Program memory and I/O expansion ceiling

The CJ2H-CPU64 carries 160K Words of program memory — enough to hold a mid-sized machine sequence with multiple motion axes and recipe tables without an external memory card. Expandable to 40 modules across 3 racks, so the I/O count scales with the machine footprint without swapping the CPU. Battery backup retains the program and retained data during power loss, which means no forced re-download after a line outage.

Communications and panel integration

Built-in RS-232C and USB ports let you connect directly to a laptop for programming and monitoring without an extra interface module — useful during commissioning and fault diagnosis. The DIN-rail mount clips into the standard 35 mm rail, so it fits the same backplane as other Omron CJ-series modules. Operating range is 0°C to 55°C, which covers most ventilated electrical enclosures without forced cooling.

Approval package and active lifecycle

CE, cULus, Lloyd, and NK approvals mean the CPU is accepted in industrial machinery for North America, Europe, and marine applications — no separate certification project needed for those markets.

MPN
CJ2H-CPU64
