Omron CJ2H-CPU65-EIP — PLCs (Programmable Logic Controllers)

Omron CJ2H-CPU65-EIP PLC CPU, 160K Words, Ethernet/IP

MPNCJ2H-CPU65-EIP
Active

Omron CJ2H series CPU, CJ2H-CPU65-EIP, 160K Words memory, Ethernet/IP, RS-232C, USB, 40-module expandability, DIN rail mount.

$2,558.53 – $5,039.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CJ2H-CPU65-EIP — Identification
ParameterValue
SeriesCJ2H
CJ2H-CPU65-EIP — I/O
ParameterValue
Expandable40 Modules (3 Racks) Max
CJ2H-CPU65-EIP — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CJ2H-CPU65-EIP — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.617 lb (279.87 g)
CJ2H-CPU65-EIP — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CJ2H-CPU65-EIP — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size160K Words
Display typeNo Display
CommunicationsEthernet, RS-232C (CompoWay/F, Modbus), USB

Product details

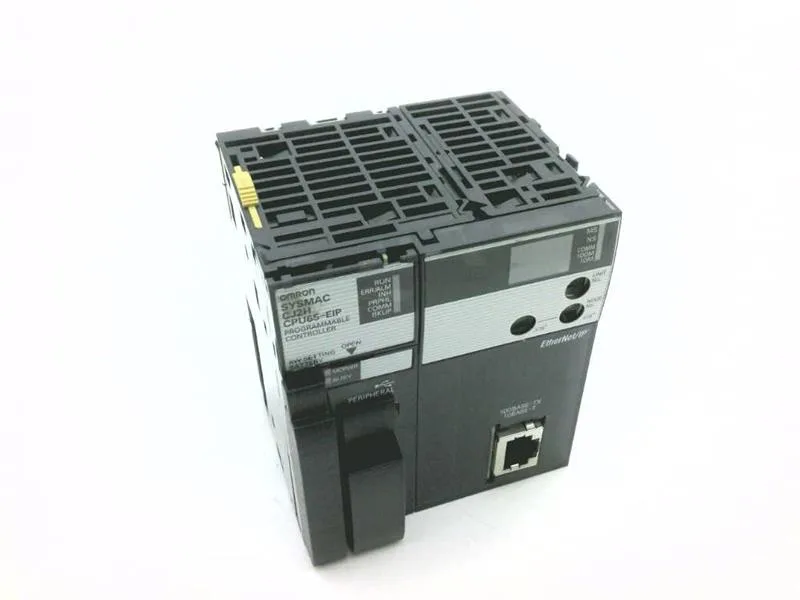

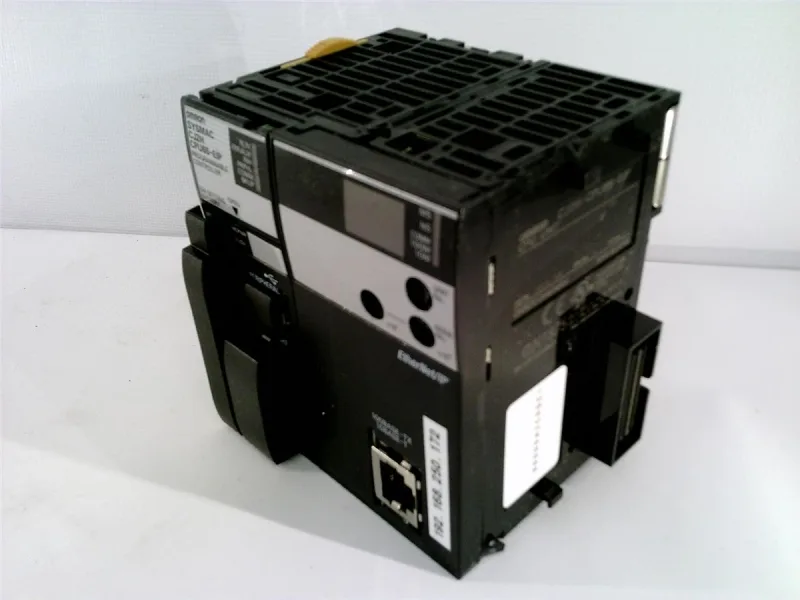

The CJ2H-CPU65-EIP is the Ethernet/IP-equipped CPU in Omron's CJ2H series — a mid-range rackless PLC processor with 160K words of program memory and support for up to 40 modules across 3 racks. Communication is handled by an onboard Ethernet/IP port plus RS-232C (supporting CompoWay/F and Modbus) and a USB port. It's approved for CE, cULus, Lloyd, and NK — meaning it'll pass inspection for marine and industrial control panels. No display, so all configuration goes through CX-One software on a PC.

Mounts on DIN rail, operating 0 to 55°C. Battery backup retains program and clock; CX-One software used for configuration; expandable to 40 modules across 3 racks.

Frequently asked questions

What is the closest functional alternative if I cannot get this CPU?

The CJ2M-CPU14 has the same 160K words memory and 40-module expandability but lacks Ethernet/IP — it only has RS-232C and USB.

What compliance approvals does this CPU carry?

It is approved for CE, cULus (Canadian and US UL), Lloyd's Register (marine), and NK (Nippon Kaiji Kyokai, marine classification).

What is the memory size and expandability?

160K words program memory, expandable to 40 modules across 3 racks.
