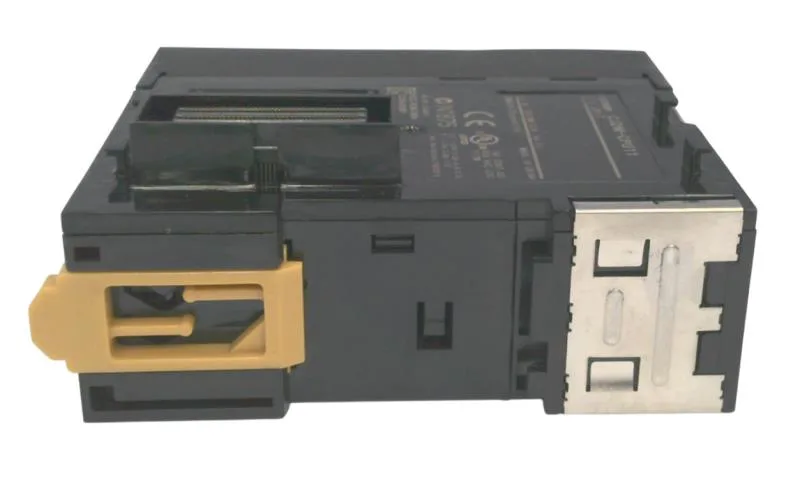

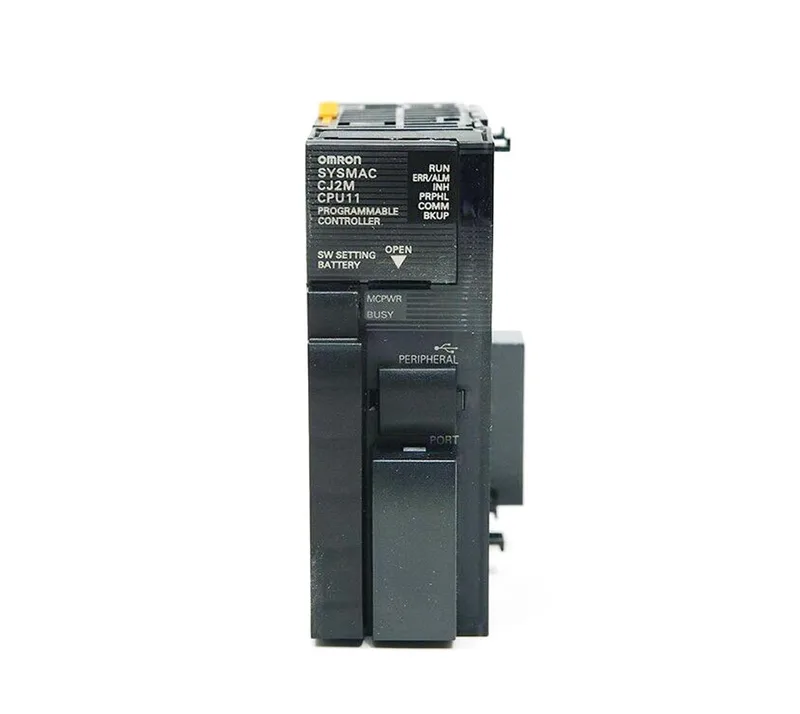

Omron CJ2M-CPU11

Omron CJ2M-CPU11 PLC CPU, 64K Words, RS-232C/USB

MPN CJ2M-CPU11
Active

Omron CJ2M-CPU11 CPU unit, 64K words memory, RS-232C / USB, 5000 steps, DIN-rail mount, battery backup, CE/cULus/Lloyd/NK approved.

$182.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CJ2M-CPU11 specifications
ParameterValue
SeriesCJ2 M
Display typeNo Display
ProtocolRS-232C, USB
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.287 lb (130.18 g)
PackageBox

Product details

64K words, 5000 steps — the entry-level CJ2M CPU

The Omron CJ2M-CPU11 is the base CPU in the CJ2M series, built for machine control applications that need deterministic scan cycles and a compact DIN-rail footprint. It carries 64K words of program memory and 5000 steps of logic capacity — enough for mid-size sequencing, motion coordination over the CJ-series backplane, and fieldbus master functions via an optional communications module. Two built-in serial ports — RS-232C and USB — give the integrator a direct programming connection and a Modbus-RTU or serial-peripheral link without an extra slot card. The USB port is the primary CX-One programming channel; the RS-232C port can talk to an HMI, a barcode scanner, or a drive string.

Expansion ceiling and battery-backed retentive memory

The CJ2M-CPU11 supports up to 40 expansion modules across three racks — that covers a full I/O complement plus specialty slices (temperature, positioning, serial, Ethernet/IP, EtherCAT) without hitting the backplane power budget. The battery backup holds the program and retentive data through power cycles; the battery is user-replaceable and the CPU flags a low-battery alarm on the CX-One diagnostics screen.

Active lifecycle and approvals — no end-of-line risk

Sourced through independent distribution channels, quoted to order against the BOM quantity. No minimum order quantity beyond the unit itself.

MPN
CJ2M-CPU11
