Omron CJ2M-CPU32 — PLCs (Programmable Logic Controllers)

Omron CJ2M-CPU32 PLC CPU, 30 K steps, 64 K words, discontinued

MPNCJ2M-CPU32
Active

Omron CJ2M-CPU32 Programmable (Plc, Pac) — now discontinued, supplied from remaining surplus and broker stock.

$499.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CJ2M-CPU32 — Identification
ParameterValue
SeriesCJ2M
CJ2M-CPU32 — I/O
ParameterValue
Expandable40 Modules (3 Racks) Max
CJ2M-CPU32 — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CJ2M-CPU32 — Mechanical
ParameterValue
Mounting typeDIN Rail
Weight0.419 lb (190.06 g)
CJ2M-CPU32 — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CJ2M-CPU32 — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size64K Words
Display typeNo Display
CommunicationsEthernet, USB, Option Cards Available

Product details

Overview

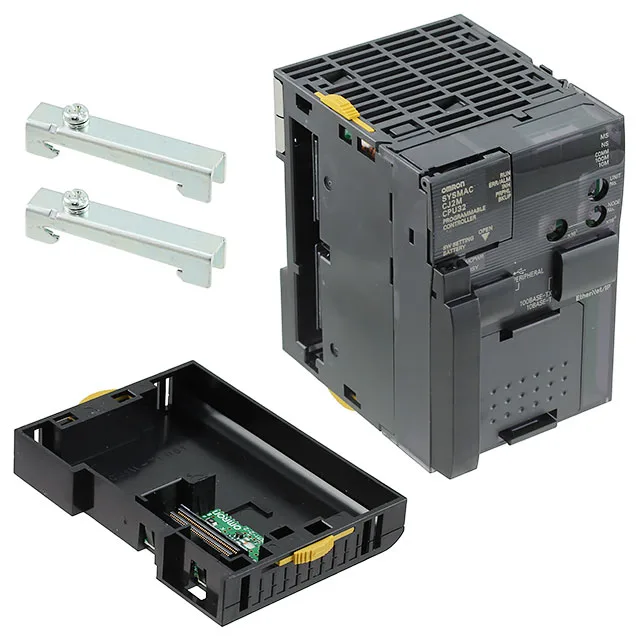

The CJ2M-CPU32 is an Omron CJ2M-series PLC CPU with a program capacity of 30 K steps and 64 K words of data memory, executing logic at 0.04 μs per instruction. It supports EtherNet/IP and Ethernet TCP/IP via its built-in Ethernet port, plus USB programming, and mounts on a DIN rail in a 90 mm x 62 mm x 84.5 mm footprint.

Compared to the CJ2M-CPU33, the CJ2M-CPU32 offers a larger program capacity of 30 K steps versus 20 K steps, while both share 64 K words of data memory. The CJ2M-CPU33 adds an EtherNet/IP port and a serial option slot, making it the closer functional second-source for panels already wired for Ethernet.

MPN
CJ2M-CPU32
