Mixed I/O with pulse capability — one slot, three output types

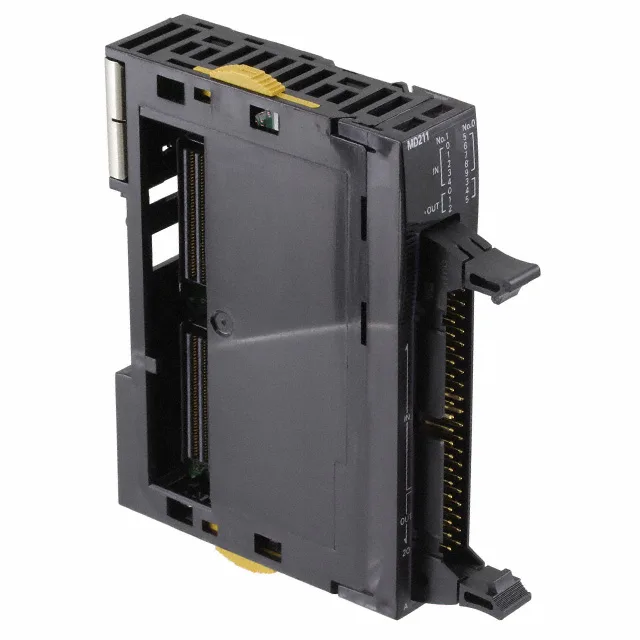

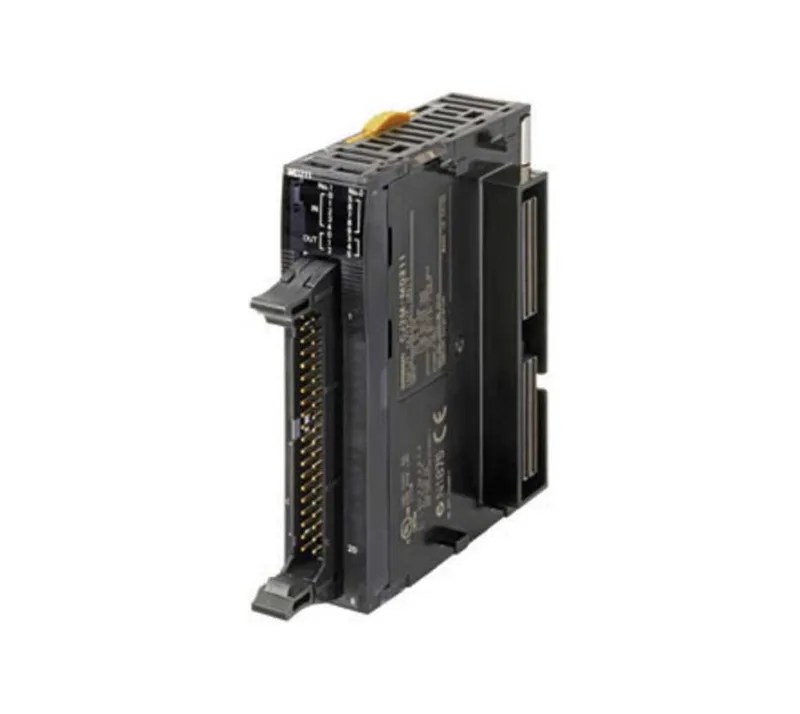

The Omron CJ2M-MD211 lands as a mixed I/O module for the CJ2M backplane, packing 10 digital inputs and 6 outputs that split into 2 pulse outputs, 2 PWM outputs, and 2 solid-state outputs. That means a single slot handles high-speed counting or positioning (pulse), analog-like PWM for variable-speed triggers, and general-purpose switching — a slot-saver when your rack is tight and the BOM freeze deadline is next week.
Not a drop-in for CP1W-32ET — different IO profile, different platform
Sourcing comparison with the CP1W-32ET stops at the approval marks: both carry CE, Lloyd, NK. But the CJ2M-MD211 serves the CJ2M rack with a rectangular connector; the CP1W-32ET is a 32-point solid-state output module on a screw-terminal CP1W carrier. The CJ2M-MD211 brings inputs and mixed output types (pulse/PWM) that the CP1W-32ET cannot match, and the terminal style alone rewires the panel. If your BOM line specifies pulse or PWM, the CJ2M-MD211 is the only candidate among these two — no wiring time lost chasing a cross.
Active and approved — no last-time-buy scramble
The module is active and mature. Approvals: CE, cULus, Lloyd, and NK.
Mounts on a DIN rail — rectangular connector, not screw terminals
Sits on a DIN rail with a rectangular connector. That connector is a key detail for the panel builder: no screw-clamp wiring; expect a pre-made cable or an IDC termination kit. Verify that the cable assembly matches your panel's gland plate before the rack slot is committed. The CJ2M backplane provides the power and communication — no separate backplane power supply needed for this module.
