Omron CP1E-E10DR-A

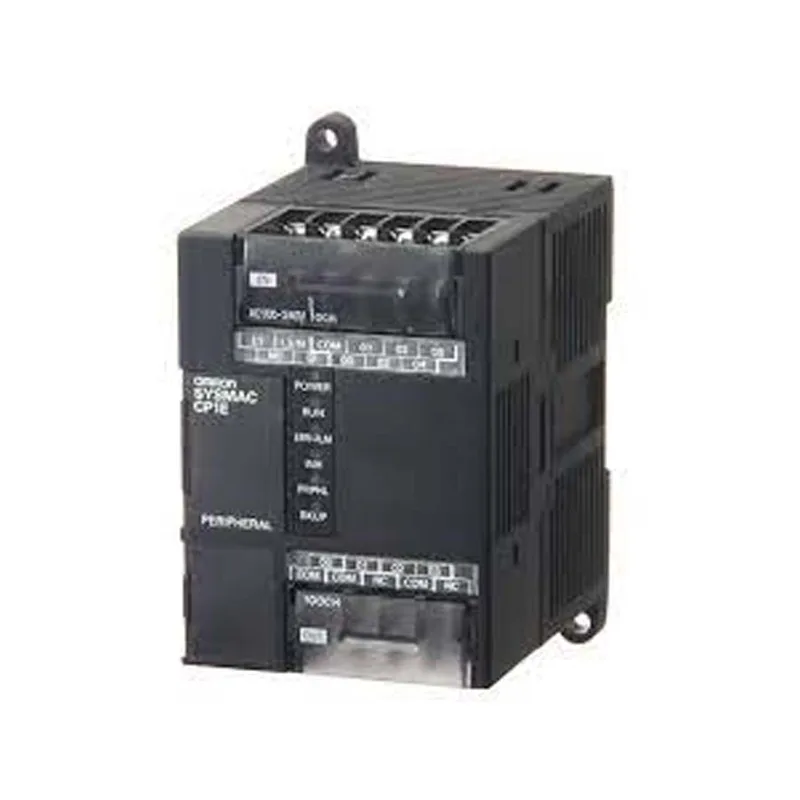

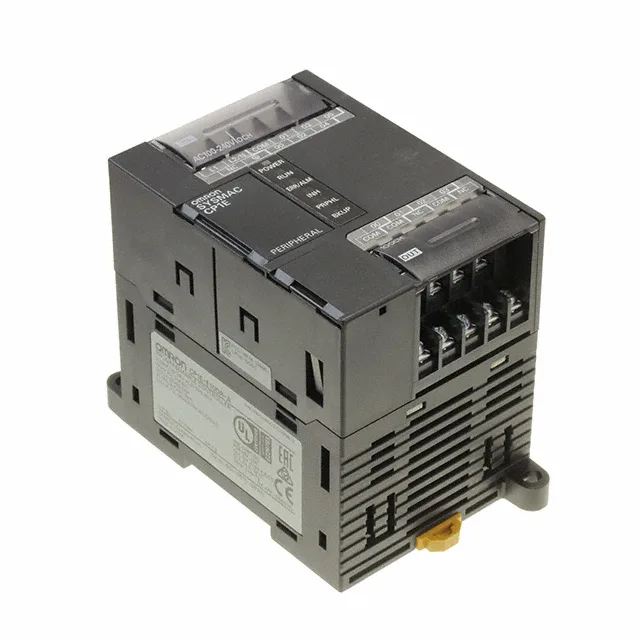

Omron CP1E-E10DR-A PLC, 6 Digital Inputs, 4 Relay Outputs

MPN CP1E-E10DR-A
Active

Omron CP1E series, CP1E-E10DR-A, a non-expandable PLC with 6 digital inputs and 4 relay outputs, 2K words memory, 100-240 VAC supply, chassis/DIN rail mount.

$105.00 – $314.41 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CP1E-E10DR-A specifications
ParameterValue
SeriesCP1E
Display typeNo Display
Supply voltage100 to 240VAC
ProtocolUSB
MountingChassis Mount, DIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.661 lb (299.82 g)
PackageBox

Product details

Entry-level PLC for fixed-I/O applications

The Omron CP1E-E10DR-A is a compact, non-expandable PLC from the CP1E series, designed for small standalone machines or simple control tasks where the I/O count is fixed. It provides 6 digital inputs and 4 relay outputs, enough for a handful of sensors and actuators like start/stop buttons, limit switches, or small solenoids. The 2K words memory is sufficient for basic ladder logic sequences but will fill quickly with complex routines or large data tables — plan the program size before committing.

Mounting and power supply constraints

Powered by 100-240 VAC, so no separate 24 VDC power supply is needed for the CPU; the relay outputs switch up to 2 A per point (resistive), but the total output current is limited by the internal common rail.

Approvals include CE, cULus, Lloyd, and NK, so it is accepted in European, North American, and marine (Lloyd's, Nippon Kaiji Kyokai) installations — useful for shipboard or offshore auxiliary controls.

Programming and communications

Programmed via CX-One software (the same environment used for Omron's CJ, CS, and CP1L series), so a shop already running CX-One can reuse the project templates and tag database. The USB port handles programming and monitoring — no serial adapter needed.

MPN
CP1E-E10DR-A
