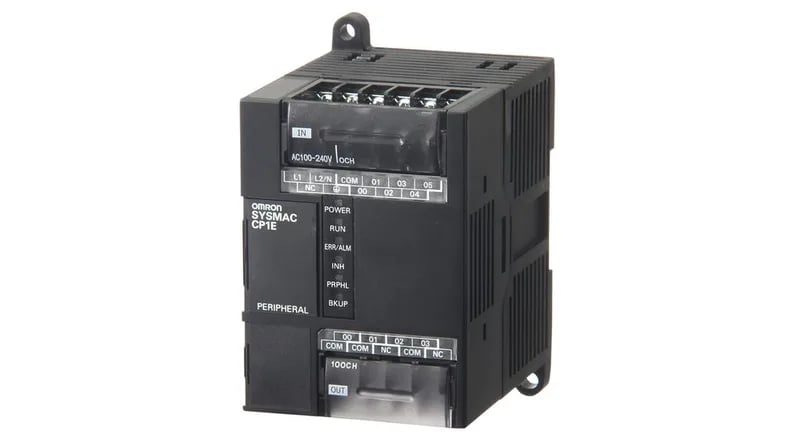

The CP1E-E10DR-D is an Omron CP1E-series brick‑style PLC packing 6 digital inputs and 4 relay outputs rated 2 A per point. It’s meant for small machines or standalone control islands where you need a compact, expandable controller without a display. Memory is 8 KB, enough for a couple hundred rungs of ladder. It runs on 100–240 VAC or 24 VDC input supply – handy if you’re pulling power from an existing panel transformer. The relay outputs handle 2 A resistive; for inductive kicks, keep the snubber budget in mind. Built‑in features include high‑speed counters, input interrupts, and pulse‑train outputs for transistor models, but this relay‑output variant still supports the high‑speed counting and interrupt functions on the inputs if you need fast capture. Panel-mount footprint is 2.6″ × 4.33″. Expandable for additional I/O capacity.
Drop‑in or not? CP1L comparison
Seen the CP1L‑M60DR‑D and wondering if it’s a swap? It’s not. The CP1L is a larger platform – 32K words memory, 36 inputs, 24 relay outputs, DIN‑rail mount, and adds battery backup and USB. Different footprint, different wiring plan, different program capacity. No field‑service bodging without a full re‑panel.
