Compact PLC for small-machine control

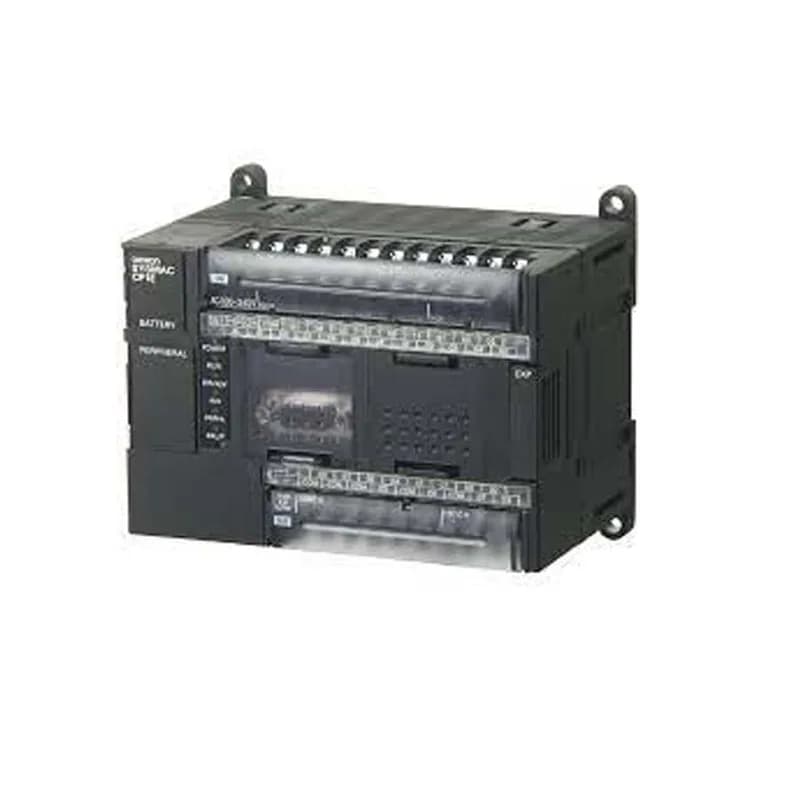

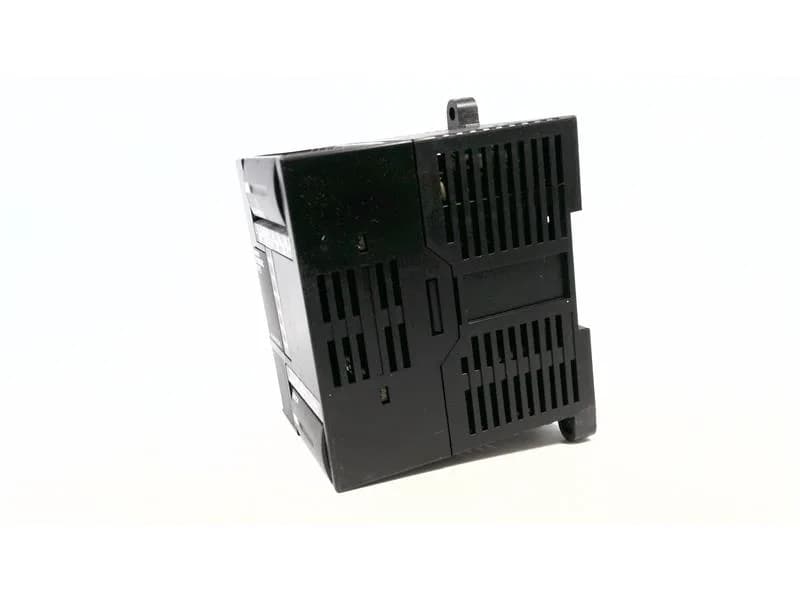

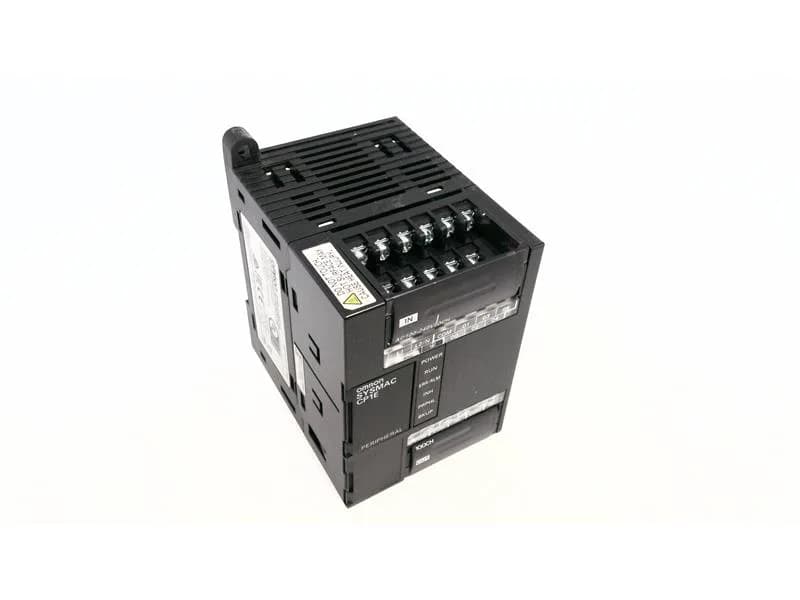

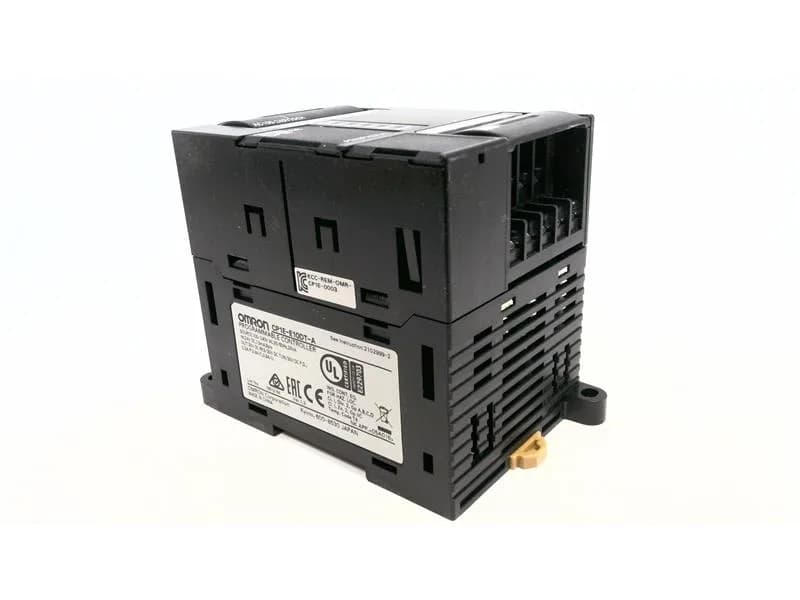

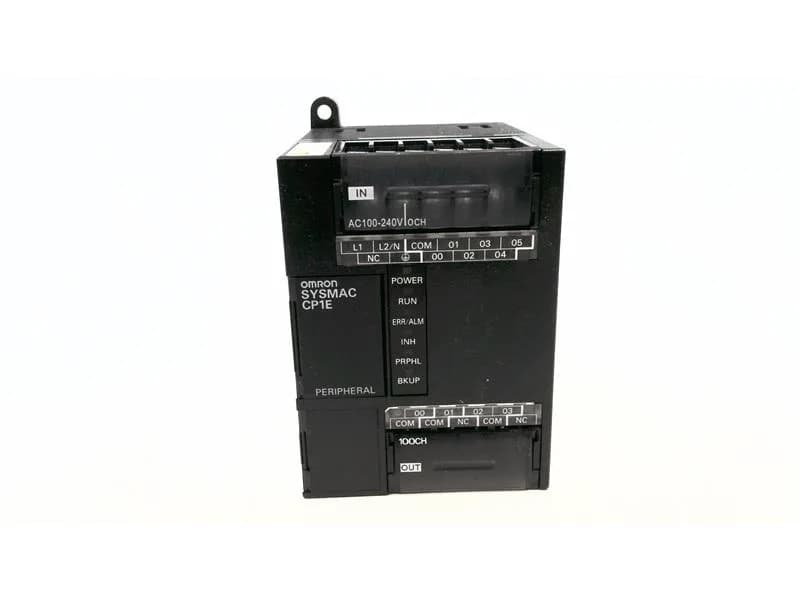

The CP1E-E10DT-A is a compact programmable logic controller from Omron's CP1E series, sized for small-machine control with 6 digital inputs and 4 NPN transistor outputs. Runs on 100–240 VAC, drawing 300 mA from the supply line. Memory holds 8 KB of program, with 256 timers and 256 counters available. Onboard high-speed counters, input interrupts, pulse control, and PWM outputs handle basic positioning and event-driven logic without an add-on module. Panel-mountable and expandable; no display, so status is read from the LED indicators on the front face. Per output current is limited to 0.3 A, typical for transistor outputs driving solenoids or small loads.
