The Omron CP1E-E10DT-D is a compact programmable logic controller in the CP1E series, delivering 6 inputs and 4 NPN transistor outputs on 24 V DC. With 8 KB of program memory and expandable I/O, it handles small machine control or standalone automation tasks. Built-in high-speed counters, input interrupts, pulse control, and PWM outputs are standard, so you can handle simple positioning or frequency measurement without adding a special-function card.

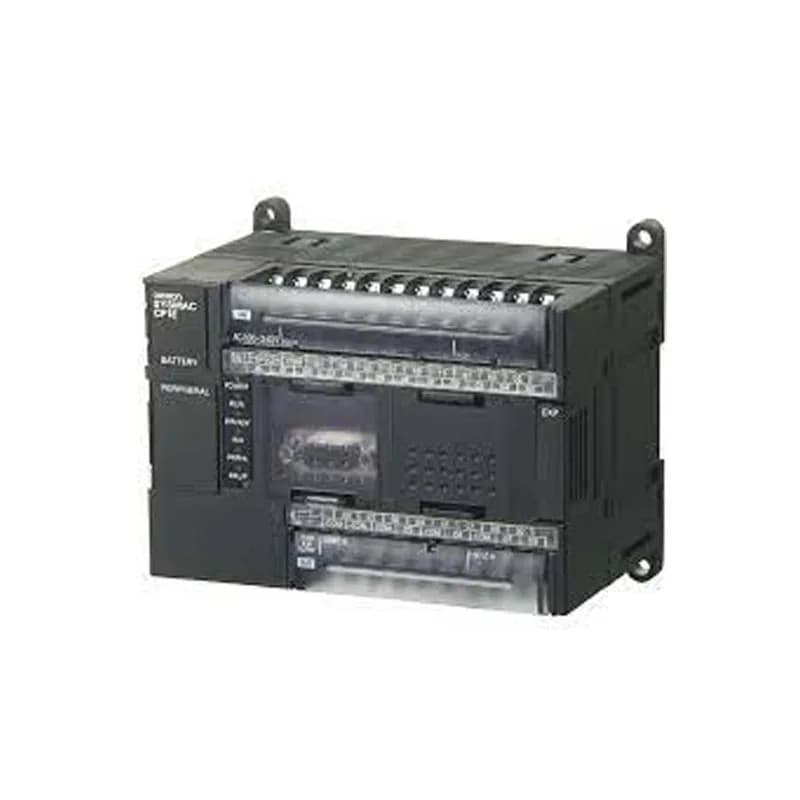

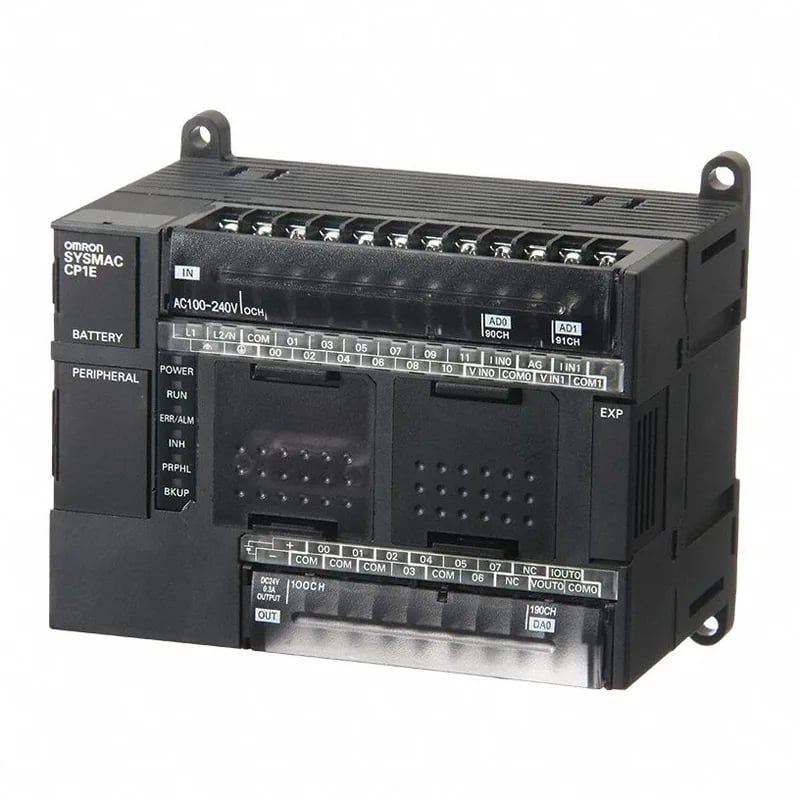

Omron CP1E-E10DT-D PLC, 6 Inputs 4 Outputs 24V DC
MPNCP1E-E10DT-D
Active
Omron CP1E-E10DT-D programmable logic controller, 8 KB memory, 6 inputs, 4 NPN transistor outputs, 24 V DC, expandable.
$106.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP1E |
| Display type | No Display |
| Product type | Programmable Logic Controller |
| Number and type of outputs | (4) NPN |
| DC voltage rating | 24V DC |
| Supply voltage rating | 24V DC |
| Current | 300 mA |
| Input circuit current - maximum | 30 A |
| Output circuit current - maximum | 0.3 A |
| I/O channels | 6 |
| Mounting style | Panel |
| Overall depth | 3.35 in |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 2.6 in |
| Overall height | 4.33 in |
| Brand | OMRON |
| Features | High Speed Counters; Input Interrupts; Pulse Control for Transistor Output; PWM Outputs for Transistor Output |
| Display qty | 1 |
| Expandability | Expandable |
| Clock included | Clock Not Included |
| Memory capacity | 8 KB |
| Display sell UOM | EA |
| Number of timers | 256 |
| Number of counters | 256 |
Product details
Frequently asked questions
What series does the CP1E-E10DT-D belong to?
The CP1E-E10DT-D is part of the CP1E series.
What are the key I/O ratings of the CP1E-E10DT-D?
It has 6 inputs, 4 NPN transistor outputs with a maximum output circuit current of 0.3 A, and operates on 24 V DC supply.
