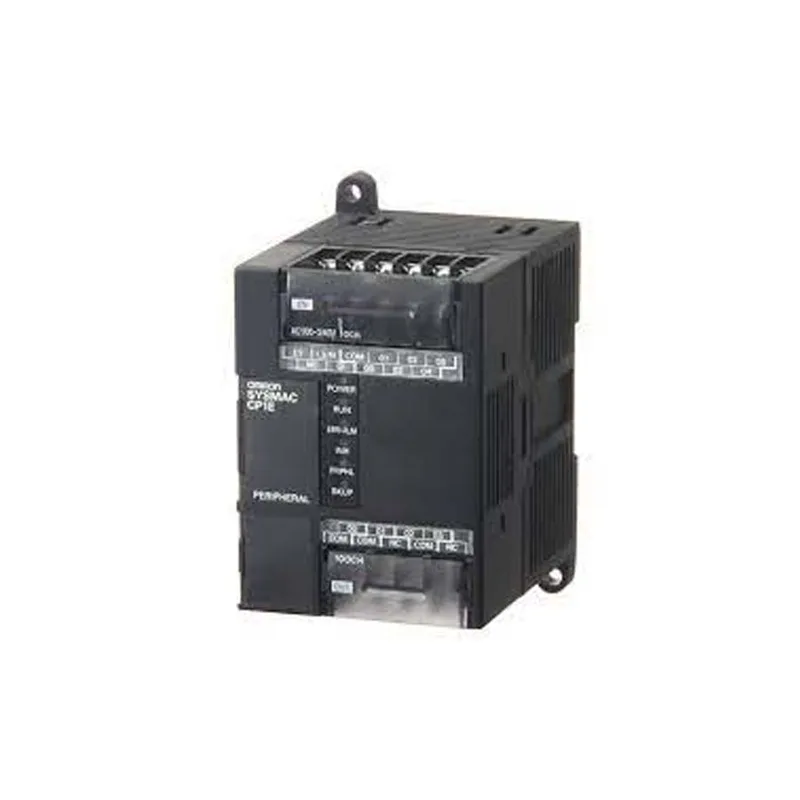

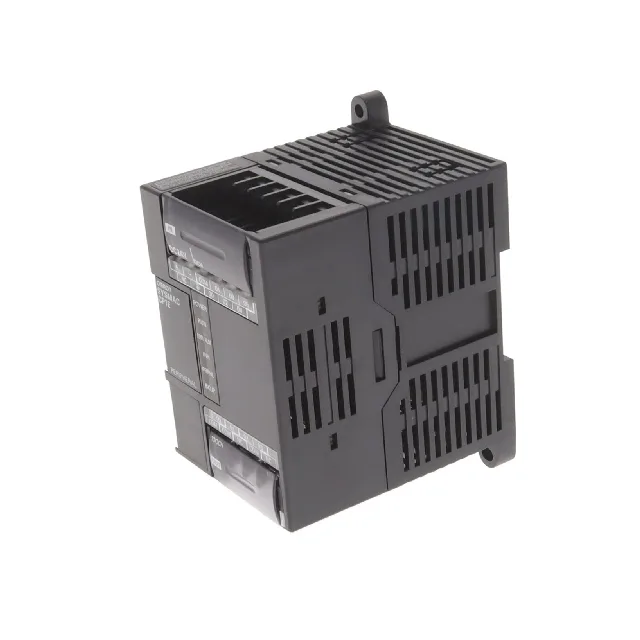

Omron CP1E-E10DT1-D — PLCs (Programmable Logic Controllers)

Omron CP1E-E10DT1-D PLC, 6 Inputs 4 Outputs 24VDC

MPNCP1E-E10DT1-D
Active

Omron CP1E Series, CONTROL LOGIC 6 IN 4 OUT 24V, Non-Expandable, 2K Words Memory, USB, CE, cULus.

$106.00 – $314.41Ref. price · indicative, final on quote
Omron CP1E-E10DT1-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1E-E10DT1-D — Identification
ParameterValue
SeriesCP1E
CP1E-E10DT1-D — I/O
ParameterValue
Inputs (count and type)6 - Digital
Outputs (count and type)4 - Solid State
ExpandableNon-Expandable
CP1E-E10DT1-D — Electrical
ParameterValue
Supply voltage24VDC
CP1E-E10DT1-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1E-E10DT1-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.661 lb (299.82 g)
CP1E-E10DT1-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1E-E10DT1-D — Other specifications
ParameterValue
SoftwareCX-One
Memory size2K Words
Display typeNo Display
CommunicationsUSB

Product details

What it is: a fixed-I/O brick for simple standalone machines

The Omron CP1E-E10DT1-D is a compact, non-expandable PLC with 6 digital inputs and 4 solid-state outputs, running on 24 VDC. Its 2K words of program memory suit small, fixed logic — think a single station with a few sensors and actuators.

Non-expandable means the 6-in/4-out count is final. For more I/O, step up to a CP1L. The 2K Words memory suits simple logic — not multi-axis sequences. USB-only communication limits to local programming.

Frequently asked questions

Can the CP1L-L10DT-A replace the CP1E-E10DT1-D?

Not directly. The CP1L-L10DT-A requires 100–240 VAC (the CP1E is 24 VDC) and is expandable with larger memory, so a wiring and power supply change is needed. The I/O count and footprint are similar, but they are not drop-in replacements.
