Omron CP1E-E40DR-A — PLCs (Programmable Logic Controllers)

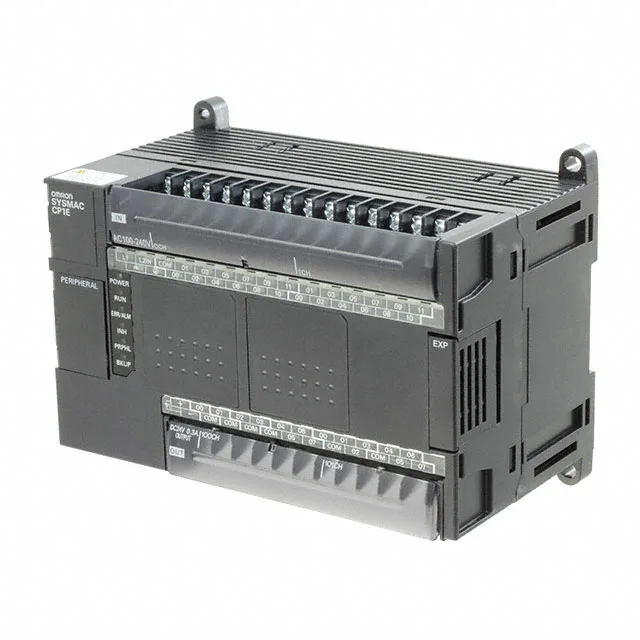

Omron CP1E-E40DR-A PLC, 24 Inputs, 16 Relay Outputs, 100-240VAC

MPNCP1E-E40DR-A
Obsolete

Omron CP1E series, CP1E-E40DR-A, Programmable Logic Controller, 24 digital inputs, 16 relay outputs, 100~240VAC supply, 2K Words memory, expandable to 40 modules (3 racks).

$173.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CP1E-E40DR-A — Identification
ParameterValue
SeriesCP1E
CP1E-E40DR-A — I/O
ParameterValue
Inputs (count and type)24 - Digital
Outputs (count and type)16 - Relay
Expandable40 Modules (3 Racks) Max
CP1E-E40DR-A — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
CP1E-E40DR-A — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1E-E40DR-A — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight1.5 lbs (680.4 g)
CP1E-E40DR-A — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1E-E40DR-A — Other specifications
ParameterValue
SoftwareCX-One
Memory size2K Words
Display typeNo Display
CommunicationsUSB

Product details

I/O and expandability for machine control

This unit packs 24 digital inputs and 16 relay outputs — enough for a standalone machine cell or a small line section. The relay outputs handle inductive loads like contactors and small motors directly, though cycle life is lower than solid-state alternatives. Expandable to 40 modules across 3 racks, so you can add analog, temperature, or communication slices later.

Mounting and approvals

Carries CE, cULus, Lloyd, and NK approvals — suitable for industrial and marine environments.

MPN
CP1E-E40DR-A
