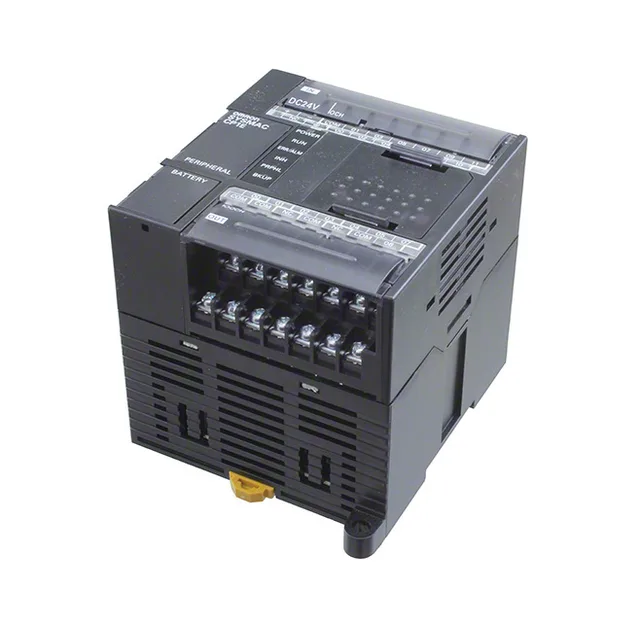

Omron CP1E-N20DT1-D — PLCs (Programmable Logic Controllers)

Omron CP1E-N20DT1-D PLC, 12 Digital Inputs, 8 Solid-State Outputs, 24 VDC

MPNCP1E-N20DT1-D
Obsolete

Omron CP1E series, CP1E-N20DT1-D, non-expandable PLC with 12 digital inputs, 8 solid-state outputs, 24 VDC supply, 8K words memory, RS-232C, battery backup, CE/cULus/Lloyd/NK approved.

$390.91 – $610.50Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

CP1E-N20DT1-D — Identification
ParameterValue
SeriesCP1E
CP1E-N20DT1-D — I/O
ParameterValue
Inputs (count and type)12 - Digital
Outputs (count and type)8 - Solid State
ExpandableNon-Expandable
CP1E-N20DT1-D — Electrical
ParameterValue
Supply voltage24VDC
CP1E-N20DT1-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1E-N20DT1-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.816 lb (370.13 g)
CP1E-N20DT1-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1E-N20DT1-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size8K Words
Display typeNo Display
CommunicationsRS-232C

Product details

Sourcing reality: discontinued, no direct replacement

The CP1E-N20DT1-D is discontinued per Omron's lifecycle status. Sourcing is limited to surplus or broker channels — expect to submit an RFQ for availability and lead time.

Fit and I/O: 24 VDC, 12 digital inputs, 8 solid-state outputs

This is a non-expandable PLC with 12 digital inputs and 8 solid-state outputs, powered by 24 VDC. The 8K words memory and RS-232C communication suit standalone machine control with no need for expansion racks. Battery backup retains the program and data during power loss.

Drop-in check vs CP1E-N20DT-D

The CP1E-N20DT-D is the closest functional sibling — same I/O count, same 24 VDC supply, same memory, same mounting and approvals. The only difference in the evidence is the package: the CP1E-N20DT1-D ships in Bulk, while the CP1E-N20DT-D ships in Box.

Mounts on chassis or DIN rail. Approved by CE, cULus, Lloyd, and NK — covers most industrial and marine applications.

Frequently asked questions

Is the Omron CP1E-N20DT1-D discontinued?

Buyers must confirm obsolete status before budgeting or designing in the part.

What is the replacement or equivalent for the CP1E-N20DT1-D?

Direct cross-reference is the top conversion action for obsolete MPN searches.

How many inputs and outputs does the CP1E-N20DT1-D have?

Core spec to confirm fit against panel I/O count before purchase.

What is the difference between CP1E-N20DT1-D and CP1E-N20DT1?

Resolves the common variant-confusion that blocks order placement.

Does the CP1E-N20DT1-D support expansion modules?

Determines whether the non-expandable N-series meets future I/O growth needs.

Where can I buy the CP1E-N20DT1-D with current pricing and availability?

Obsolete stock is scarce; surfacing live stock/quote paths drives transaction intent.

MPN
CP1E-N20DT1-D
