Omron CP1E-N30DT1-D — PLCs (Programmable Logic Controllers)

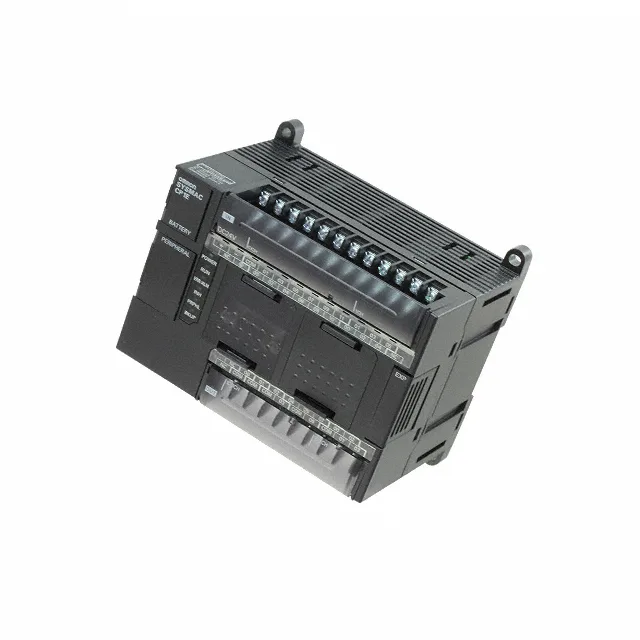

Omron CP1E-N30DT1-D PLC, 18 Digital Inputs, 12 Solid State Outputs, 24 VDC

MPNCP1E-N30DT1-D
Obsolete

Omron CP1E series, CP1E-N30DT1-D, a compact PLC with 18 digital inputs, 12 solid-state outputs, 24 VDC supply, 8K words memory, expandable to 40 modules.

$1,586.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

CP1E-N30DT1-D — Identification
ParameterValue
SeriesCP1E
CP1E-N30DT1-D — I/O
ParameterValue
Inputs (count and type)18 - Digital
Outputs (count and type)12 - Solid State
Expandable40 Modules (3 Racks) Max
CP1E-N30DT1-D — Electrical
ParameterValue
Supply voltage24VDC
CP1E-N30DT1-D — Environmental
ParameterValue
Operating temperature range0°C~55°C
CP1E-N30DT1-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight1.3 lbs (589.7 g)
CP1E-N30DT1-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1E-N30DT1-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size8K Words
Display typeNo Display
CommunicationsRS-232C, Option Cards Available

Product details

What this PLC is and what it needs

The CP1E-N30DT1-D is a 24 VDC-powered PLC from Omron's CP1E series, carrying 18 digital inputs and 12 solid-state outputs. It runs on CX-One software and holds 8K Words of program memory. The unit is expandable up to 40 modules across 3 racks, so it can grow beyond the base I/O count for medium-scale machine control. Communications are via RS-232C as standard, with option card slots available for adding fieldbus or serial protocols. There is no onboard display; programming and monitoring are done through CX-One on a PC.

Lifecycle status — discontinued, sourcing via broker

This part is discontinued per Omron's lifecycle status.

Mounting and approvals

Mounts on DIN rail or chassis. Weight is 1.3 lbs (589.7 g). Approvals include CE, cULus, Lloyd, and NK, covering industrial and marine environments.

MPN
CP1E-N30DT1-D
