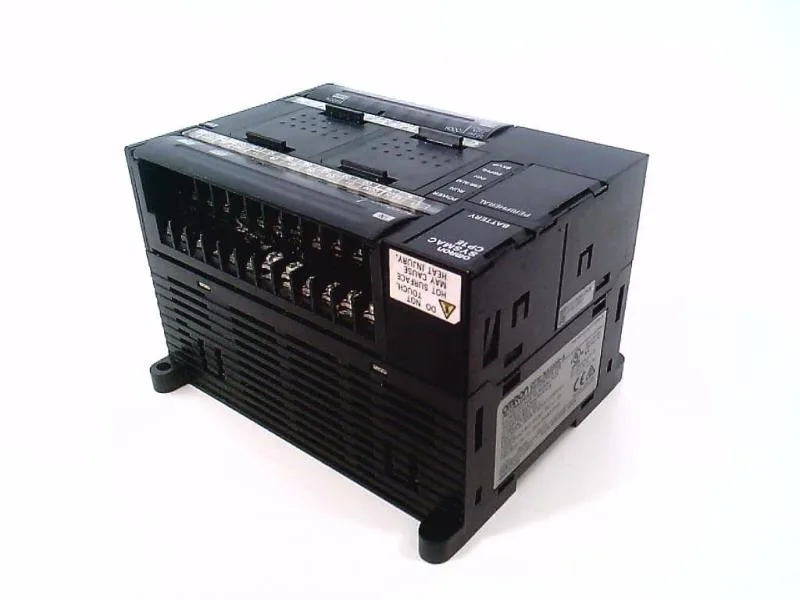

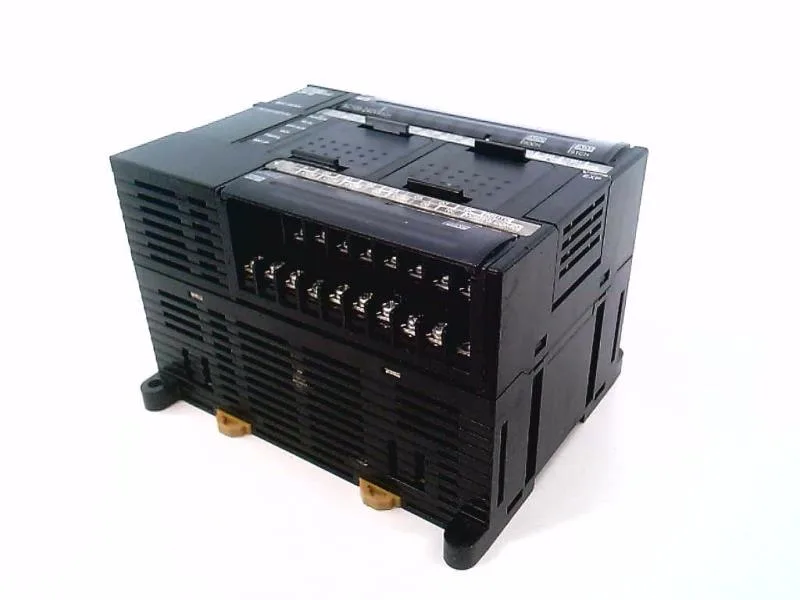

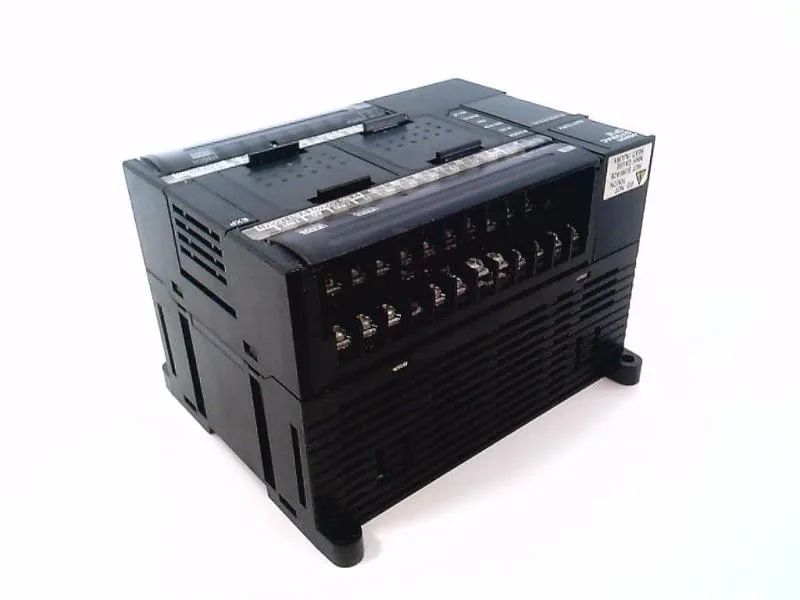

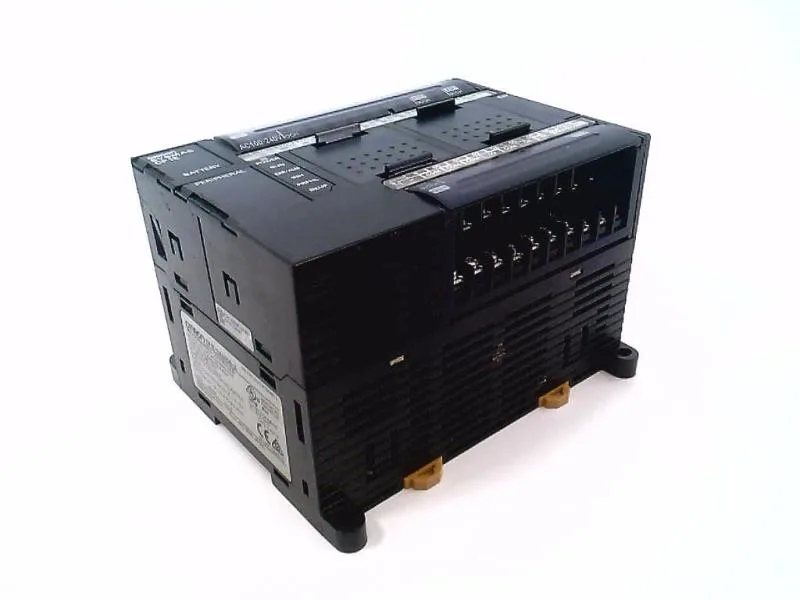

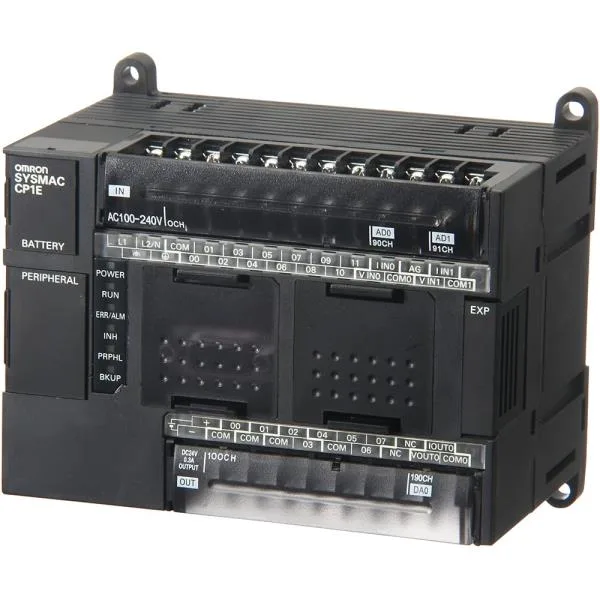

Omron CP1E-NA20DR-A Compact PLC
MPNCP1E-NA20DR-A
Active
CONTROL LOG 12 IN 8 OUT 100-240V
$441.00 – $867.73Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CP1 Series |
| Mounting | Panel Mount |
| Termination type | Screw Terminal |
| Analogue input type | 0/1 ... 5 V, -10/0 ... 10 V, 0/4 ... 20 mA |
| Digital output type | Relay |
| Analogue output type | 0/1 ... 5V, -10/0 ... 10 V, 0/4 ... 20 mA |
| Communication interface type | USB;RS-232 |
| Operating voltage max. | 264 VAC |
| Operating voltage min. | 85 VAC |
| Load current | 2 A |
| Scan time | 0.4 ms |
| Data buffer | Capacitor, Option Battery Max. 5 Years |
All specifications
| Parameter | Value |
|---|---|
| Data memory | 8000 Words |
| Expandability | Yes |
| Battery backup | Yes |
| Baud rate max. | 115.2 Kbps |
| Digital inputs | 12 |
| Analogue inputs | 2 |
| Real-Time clock | Yes |
| Analogue outputs | 1 |
| Program capacity | 8000 Steps |
| Input (Output max.) | 140 I/O Points |
| IP rating | IP20 |
| Number of relay outputs | 8 |
| Number of impulse outputs | 2 |
| Programming language used | Ladder Diagram (LD) |
| Number of high speed counters | 2 |
Frequently asked questions
What are the I/O count, power, and relay output specs of the CP1E-NA20DR-A?
Buyers and panel builders need verified I/O, supply voltage, and contact ratings before BOM approval.
Is the CP1E-NA20DR-A still active, and what is the migration path if it goes obsolete?
LTB managers and sourcing buyers need lifecycle status plus a qualified FFF alternate to avoid allocation.
What programming software and CPU revision are required for the CP1E-NA20DR-A?
Engineers must match CX-Programmer version and firmware/license to the CPU to avoid lockout errors.
How do you wire the power supply, inputs, and relay outputs of the CP1E-NA20DR-A?
Correct torque, gauge, and terminal ratings prevent mis-wiring and ensure code compliance.
What is the current price, stock, and lead time from authorized distributors?
Sourcing and broker decisions hinge on real-time availability, MOQ, and authorized vs gray-market risk.
What is the form-fit-function replacement for the CP1E-NA20DR-A (e.g., CP1L equivalent)?
Maintenance techs and MRO managers need a pin-compatible alternate to avoid downtime when stock is scarce.
MPN
CP1E-NA20DR-A
