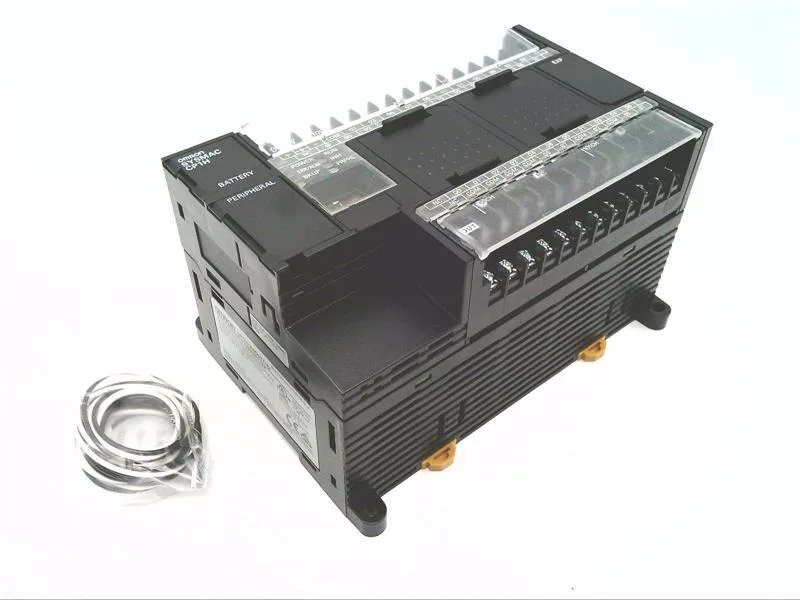

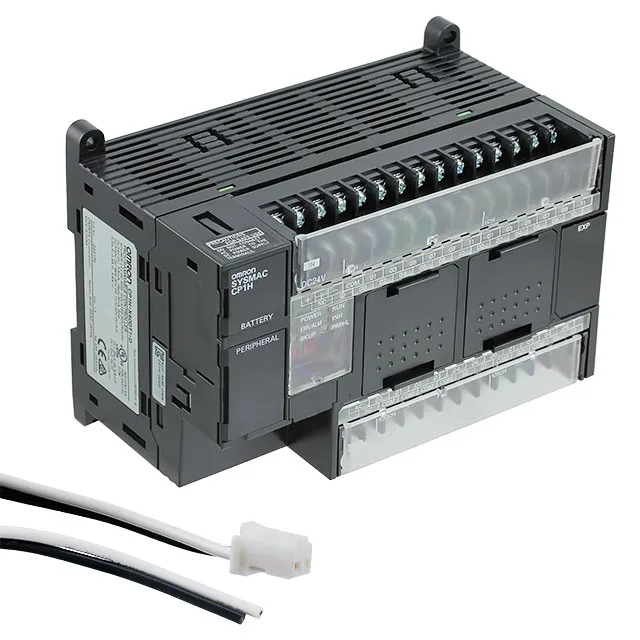

Omron CP1H Series, CP1H-X40DT1-D Programmable Logic Controller, 24 Digital Inputs, 16 Outputs (4 Pulse, 12 Solid State), 24 VDC Supply.
| Parameter | Value |
|---|---|
| Series | CP1H |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 24 - Digital |
| Outputs (count and type) | 16 - Pulse (4), Solid State (12) |
| Expandable | 7 Modules Max |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount, DIN Rail |
| Weight | 1.3 lbs (589.7 g) |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Features | Battery Backup |
| Software | CX-One |
| Memory size | 32K Words |
| Display type | LED - Red Characters |
| Communications | USB, Option Cards Available |
| Number of characters per row | 2 |
The CP1H-X40DT1-D is a 24-input, 16-output PLC from Omron’s CP1H series. It runs on 24 VDC, packs 32K words of memory, and will accept up to 7 expansion modules. The output side has four high-speed pulse outputs alongside twelve solid-state DC outputs – handy if you’re running a few steppers or simple positioning moves without a separate motion module.
Both have 24 digital inputs and 16 outputs. The CP1H-X40DT1-D supports up to 7 expansion modules and has 4 pulse outputs plus 12 solid-state DC outputs, while the CP1L-M40DR-D is limited to 3 modules and uses relay outputs. The CP1H also has a two-digit red LED display; the CP1L has no display. If you need pulse outputs for motion or plan to expand I/O, the CP1H is required.
