Omron CP1H-XA40DT1-D — PLCs (Programmable Logic Controllers)

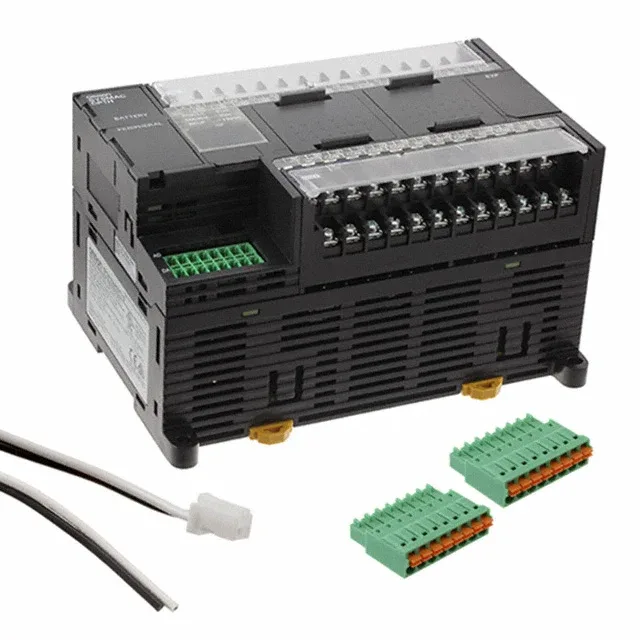

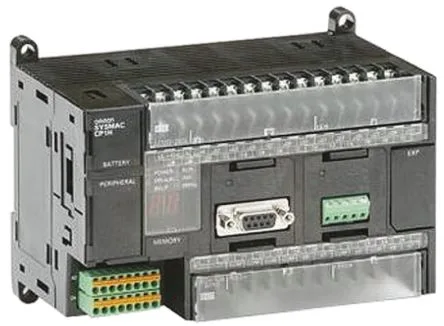

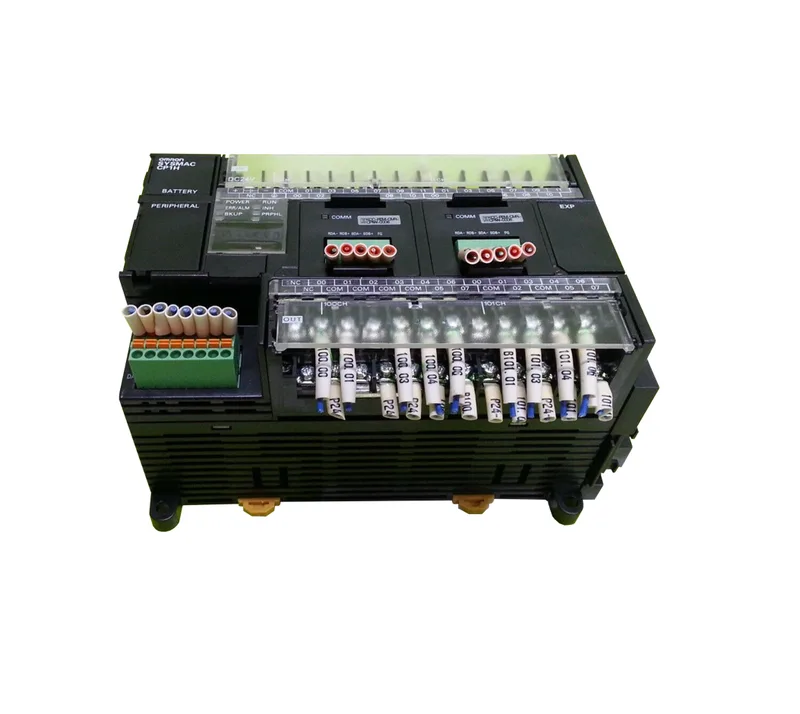

Omron CP1H-XA40DT1-D PLC CPU, 24VDC, 32K Words

MPNCP1H-XA40DT1-D
Active

Omron CP1H series, CP1H-XA40DT1-D PLC CPU, 24 VDC, 24 inputs (20 digital, 4 analog/digital), 16 outputs (2 analog, 4 pulse, 10 solid state), 32K words program memory, USB option cards, chassis/DIN rail.

$1,002.00 – $1,555.15Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1H-XA40DT1-D — Identification
ParameterValue
SeriesCP1H
CP1H-XA40DT1-D — I/O
ParameterValue
Inputs (count and type)24 - Digital (20), Analog/Digital (4)
Outputs (count and type)16 - Analog (2), Pulse (4), Solid State (10)
Expandable7 Modules Max
CP1H-XA40DT1-D — Electrical
ParameterValue
Supply voltage24VDC
CP1H-XA40DT1-D — Environmental
ParameterValue
Operating temperature range0°C~55°C
CP1H-XA40DT1-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight1.3 lbs (589.7 g)
CP1H-XA40DT1-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1H-XA40DT1-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeLED - Red Characters
CommunicationsUSB, Option Cards Available
Number of characters per row2

Product details

CPU description and I/O count

The Omron CP1H-XA40DT1-D is a CP1H-series PLC CPU running on 24 VDC, with a 32K-word program memory and a mix of 24 inputs (20 digital, 4 configurable as analog/digital) and 16 outputs (2 analog, 4 pulse, 10 solid state). Communications include USB and option card slots for fieldbus or serial expansion. The unit mounts on DIN rail or chassis, with a two-character red LED display for diagnostics. The battery backup retains program data during power loss.

Sibling comparison: CP1H-X40DT-D

The nearest sibling in the series, CP1H-X40DT-D, provides 24 digital-only inputs and 16 outputs (4 pulse, 12 solid state). The XA40DT1-D trades two of those solid-state outputs for two analog outputs and four of the digital inputs for four analog/digital combo inputs. The analog channels occupy different I/O terminals, so a panel wired for the X40DT-D requires rewiring for the XA40DT1-D.

Compliance approvals

Approved under CE, cULus, Lloyd, and NK, covering machine safety and marine applications.

Frequently asked questions

Will CP1H-XA40DT1-D drop into a panel wired for CP1H-X40DT-D?

No. The XA40DT1-D adds analog I/O on dedicated terminals that differ from the digital I/O layout of the X40DT-D; rewiring is required.

What are the key compliance approvals?

The CPU carries CE, cULus, Lloyd, and NK approvals per the spec listing.
