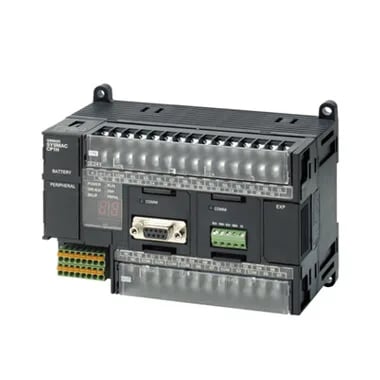

Omron CP1H-Y20DT-D

Omron CP1H-Y20DT-D 20 I/O PLC, 24 VDC, Active

MPNCP1H-Y20DT-D
Active

Omron CP1H-Y20DT-D Programmable (Plc, Pac) — 24 VDC, 20 built-in I/O (DC in, transistor out), USB & 2 option ports, 2-digit display. Active production.

$802.26 – $1,339.49Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

CP1H-Y20DT-D specifications
ParameterValue
Input typeDC
Output signalTransistor
Supply voltage24 VDC
CommunicationsUSB, 2 Option Ports
Display2 Digit 7 Segment
Built-in i (O)20
Battery backupYes
Total i (O capacity)300
Number of expansion IO7
Number of option modules2
Real-time clock, calendarYes

Product details

The Omron CP1H-Y20DT-D is a compact programmable logic controller with 20 built-in I/O points, DC inputs, and transistor outputs, running on 24 VDC. It includes a 2-digit 7-segment display, USB port, and two option module slots for communication expansion. Supports up to 300 total I/O via 7 expansion modules.

Integration notes

Program via USB. Two option ports expand communication. Real-time clock and battery backup included for time-stamped data and program retention. Each expansion module draws from the 24 VDC bus.

Frequently asked questions

What display does CP1H-Y20DT-D have?

It has a 2-digit 7-segment display, typically used for status codes and diagnostics.

What is the input type on this PLC?

The inputs are DC type, powered by the same 24 VDC supply.

Will CP1H-Y20DT-D work in a panel designed for CP1E-NA20DR-A?

No — the CP1E-NA20DR-A runs on 85-264 VAC and has relay outputs, while this unit is 24 VDC with transistor outputs. The power supply and output wiring would need to change. Panel cutout and DIN rail mounting may differ between series.

MPN
CP1H-Y20DT-D
