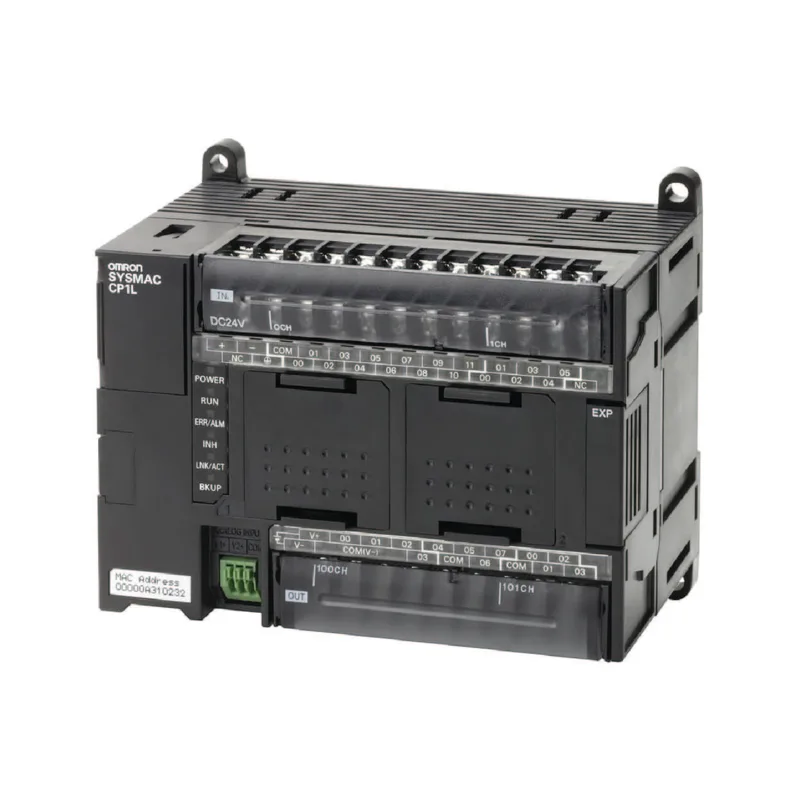

Omron CP1L-EM30DR-D, control logic unit, 18 digital inputs, 12 relay outputs, 24 VDC supply, Ethernet communication, expandable up to 3 modules.
| Parameter | Value |
|---|---|
| Series | CP1L |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 18 - Digital |
| Outputs (count and type) | 12 - Relay |
| Expandable | 3 Modules Max |
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount, DIN Rail |
| Weight | 1.1 lbs (499 g) |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE |
| Parameter | Value |
|---|---|
| Features | Battery Backup |
| Software | CX-One |
| Memory size | 32K Words |
| Display type | No Display |
| Communications | Ethernet, Option Cards Available |
The CP1L-EM30DR-D is a compact PLC from the CP1L series, offering 18 digital inputs and 12 relay outputs, powered by 24 VDC. It carries 32K words of program memory, battery backup for retentive data, and built-in Ethernet communication with option card slots for additional interfaces. The unit is CE-approved and operates in 0–55 °C ambient. Mounts on DIN rail or chassis. Expandable to 3 modules. Configured with CX-One software.
The CP1L-EM30DT-D has the same CPU, memory, I/O count, and footprint, but uses solid-state outputs instead of relay outputs. It is not a plug-compatible replacement without changing the output wiring and software assignment for output type.
It belongs to the Omron CP1L series and weighs 1.1 lbs (499 g).
No. Although the physical dimensions and wiring positions are identical, the output terminals on the DR-D are relay contacts (dry), while the DT-D are transistor outputs (sourcing DC). The load side must be rewired, and the I/O configuration in the software must be updated to reflect the output type change. A deviation is required if the customer BOM specifies the DT-D.
The CP1L-EM30DR-D carries CE approval. Typical documentation includes CE Declaration of Conformity and the product manual. RoHS compliance is standard for the series.
