Omron CP1L-EM40DR-D — PLCs (Programmable Logic Controllers)

Omron CP1L-EM40DR-D PLC, 24 Inputs 16 Relay Outputs, 24VDC

MPNCP1L-EM40DR-D
Active

Omron CP1L-EM40DR-D, PLC, 24 Digital Inputs, 16 Relay Outputs, 24 VDC, Battery Backup.

$349.00 – $986.19Ref. price · indicative, final on quote
Omron CP1L-EM40DR-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-EM40DR-D — Identification
ParameterValue
SeriesCP1L
CP1L-EM40DR-D — I/O
ParameterValue
Inputs (count and type)24 - Digital
Outputs (count and type)16 - Relay
Expandable3 Modules Max
CP1L-EM40DR-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-EM40DR-D — Environmental
ParameterValue
Operating temperature range0°C~55°C
CP1L-EM40DR-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight1.2 lbs (544.3 g)
CP1L-EM40DR-D — Approvals
ParameterValue
Approvals / certificationsCE
CP1L-EM40DR-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsEthernet, Option Cards Available

Product details

Solid mid-size CPU for a machine cell

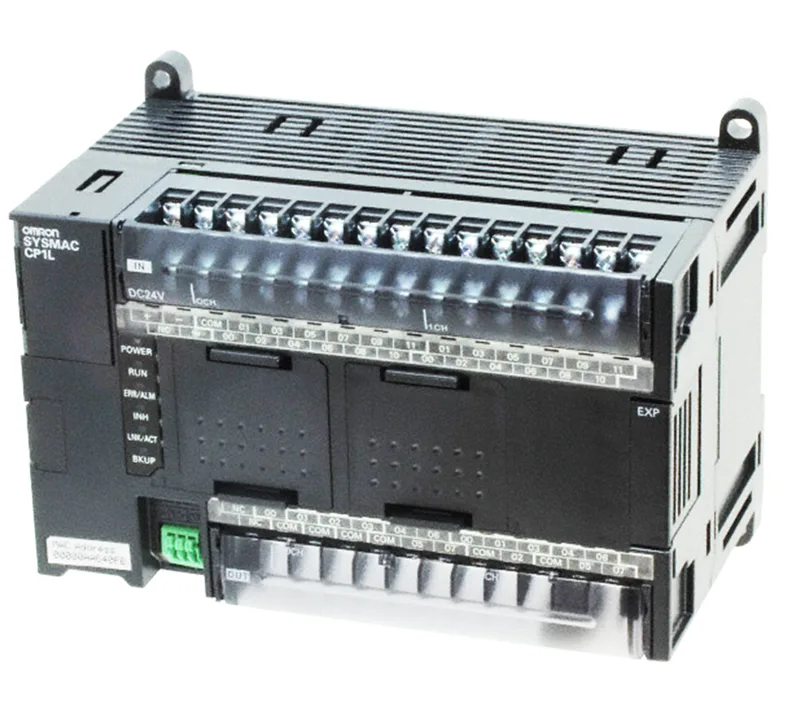

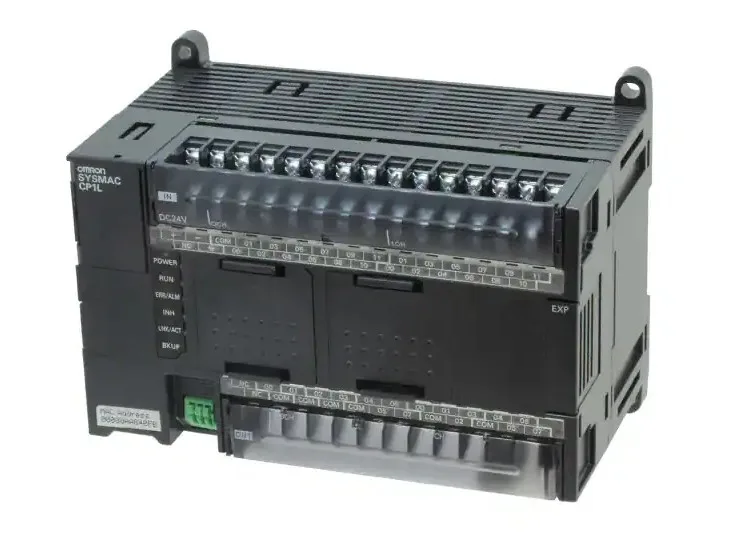

The Omron CP1L-EM40DR-D is a compact PLC with 24 digital inputs and 16 relay outputs, running on 24 VDC. Battery backup holds the 32K-word program during power loss or module swaps. Three expansion slots let you add I/O or specialty modules without jumping to a bigger frame.

Panel integration and compliance basics

Mounts on DIN rail or chassis plate with Ethernet and an option-card slot for serial or fieldbus. Software is CX-One; operating range 0°C to 55°C; CE approved.

Sourcing posture

Quoted to order against your BOM line. If the I/O count or relay type don't match exactly, the CP1L family has several options at the same base frame — just drop the part number into a quote request.

Frequently asked questions

What is CP1L-EM40DR-D's listed weight?

The unit weighs 1.2 lbs (544.3 g).

What compliance documentation does this brand provide for CP1L-EM40DR-D?

CE approval is the only agency listing on this variant. No RoHS, UL, or Lloyd's is shown in the record.
