Omron CP1L-L10DR-D — PLCs (Programmable Logic Controllers)

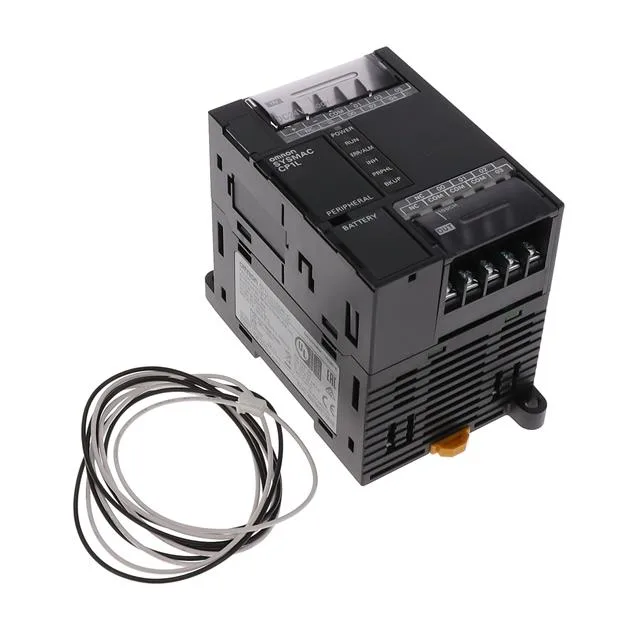

Omron CP1L-L10DR-D PLC Controller, 6 In 4 Out Relay, 24VDC

MPNCP1L-L10DR-D
Active

Omron CP1L Series, Control Logic PLC, 6 Digital Inputs, 4 Relay Outputs, 24VDC, 32K Words Memory, Expandable 1 Module, USB, Chassis/DIN Rail Mount.

$386.78Ref. price · indicative, final on quote
Omron CP1L-L10DR-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L10DR-D — Identification
ParameterValue
SeriesCP1L
CP1L-L10DR-D — I/O
ParameterValue
Inputs (count and type)6 - Digital
Outputs (count and type)4 - Relay
Expandable1 Module Max
CP1L-L10DR-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-L10DR-D — Environmental
ParameterValue
Operating temperature range0°C~55°C
CP1L-L10DR-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.661 lb (299.82 g)
CP1L-L10DR-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-L10DR-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB

Product details

The Omron CP1L-L10DR-D is a compact PLC from the CP1L series built for small-machine control. It packs 6 digital inputs and 4 relay outputs on a 24VDC base, with 32K words of program memory. The CPU accepts one expansion module via the side bus, and communication is through a standard USB port. No display, no onboard Ethernet — this is a straightforward brick designed for simple, reliable logic.

Mounts on DIN rail or chassis. One expansion module can be added via side bus. USB port for programming. Four relay outputs, 24VDC supply.

Frequently asked questions

What is the closest functional alternative to the CP1L-L10DR-D?

The Omron CP1L-L10DT1-D is the closest variant, differing only in output type: relay (DR) vs. solid-state transistor (DT1). Same I/O count, same power supply, same memory and expansion capabilities.

Will the CP1L-L10DR-D fit into a panel originally specified for the CP1L-L10DT1-D?

Yes, the two share the exact same dimensions, mounting pattern (DIN rail or chassis), and expansion architecture. The only difference is the output type, so the wiring for the output commons will be identical.

What compliance documentation is available for the CP1L-L10DR-D?

The part carries CE (European), cULus (US/Canada), Lloyd (Germanischer Lloyd marine), and NK (Nippon Kaiji Kyokai marine) approvals. Certificate data is available through the manufacturer.
