Compact PLC for standalone machine logic

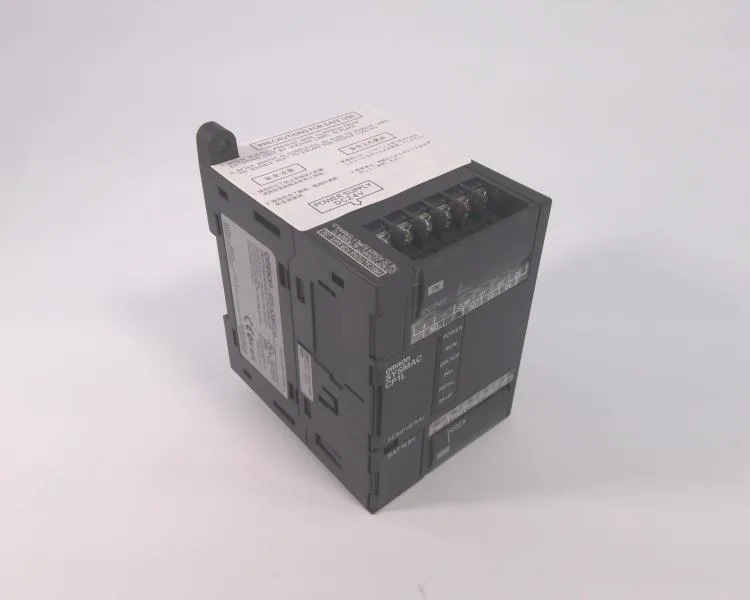

The Omron CP1L-L10DT-A is a current-production brick-type PLC in the CP1L series, sized for 6 digital inputs and 4 solid-state outputs. The 32K word memory handles ladder and function-block programs for a single machine zone or small conveyor. Battery backup retains the program and data registers through power loss.
Power-rail decision: AC vs DC supply
The direct power-rail alternative is the CP1L-L10DT-D, which shares the same I/O count, memory, expandability, and chassis/DIN-rail mounting but runs on 24 VDC instead of line voltage. If your panel is already wired for a 24 VDC bus, the -D is a drop-in swap on the DIN rail but requires a separate DC power supply. The -A is better suited when an AC tap at the controller enclosure is available, saving one converter and its panel space.
Sourcing and compliance
Active in Omron's current catalog. Programmed via CX-One software over the front-panel USB port. Compliance marks CE, cULus, Lloyd, and NK are recorded — sufficient for most industrial equipment and marine installations. No special end-of-life notices or last-time-buy windows are known; this unit is available on a quoted-to-order basis through standard distribution.
Mounting and expansion
Chassis- or DIN-rail mount. Expansion limited to one module. Battery backup retains program during power loss.
