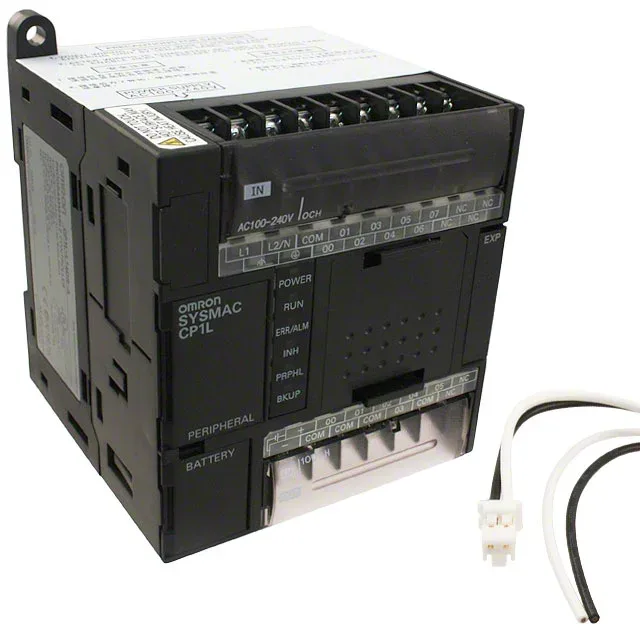

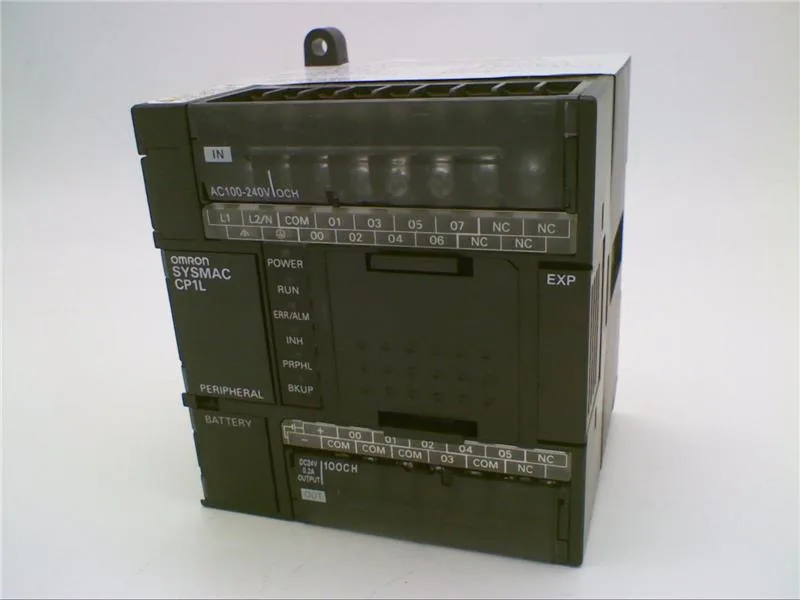

Omron CP1L Series CP1L-L14DR-A PLC, 8 digital inputs, 6 relay outputs, 100~240VAC supply, 32K words memory, battery backup, USB/option cards.
| Parameter | Value |
|---|---|
| Series | CP1L |
| Parameter | Value |
|---|---|
| Inputs (count and type) | 8 - Digital |
| Outputs (count and type) | 6 - Relay |
| Expandable | 1 Module Max |
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
| Parameter | Value |
|---|---|
| Operating temperature range | 0°C ~ 55°C |
| Parameter | Value |
|---|---|
| Mounting type | Chassis Mount, DIN Rail |
| Weight | 0.838 lb (380.11 g) |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, cULus, Lloyd, NK |
| Parameter | Value |
|---|---|
| Features | Battery Backup |
| Software | CX-One |
| Memory size | 32K Words |
| Display type | No Display |
| Communications | USB, Option Cards Available |
The CP1L-L14DR-A: Chassis/DIN-rail mount, 8 digital inputs and 6 relay outputs on a compact frame. Supply is 100-240VAC — runs off mains without a separate 24VDC power supply, saving one panel rail. 32K words program memory with battery backup; programmed via CX-One. Expansion is limited to one module, so plan the full I/O count before ordering.
No. The DR-A has relay outputs with different wiring (common terminals per group); the DT-A has transistor sourcing outputs requiring a separate DC supply and different load connections. Output wiring must be changed.
CE, cULus, Lloyd, and NK approvals are listed. That covers general industrial, US/Canada market, and marine classification societies.
