Configuration recap

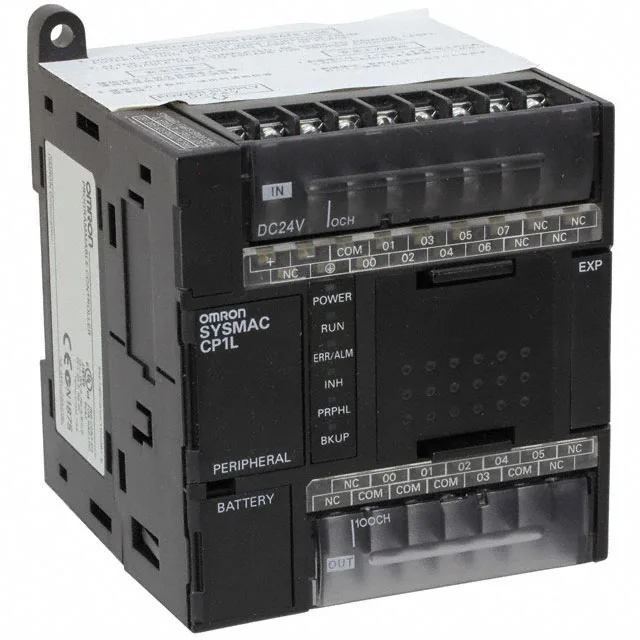

CP1L-L14DT-A from the CP1L series runs on 100-240VAC, provides 8 digital inputs and 6 solid-state outputs, 32K words memory with battery backup. USB port connects to CX-One software; DIN rail or chassis mount, one expansion slot.
Mounting and integration note
DIN rail or chassis mount. One expansion slot on the right side; option cards plug into the front communications slot for serial or Ethernet connectivity. The USB port is type B mini—standard programming cable. Battery backup retains the 32K-word user program and retained data; the battery is accessible for field replacement.
