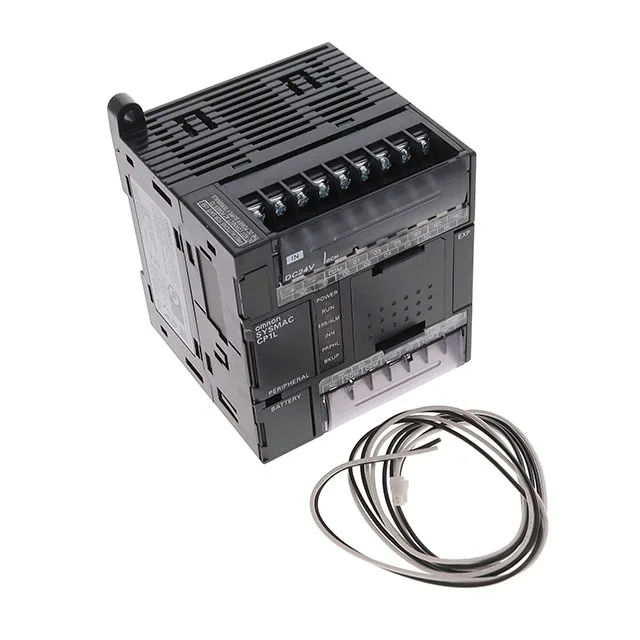

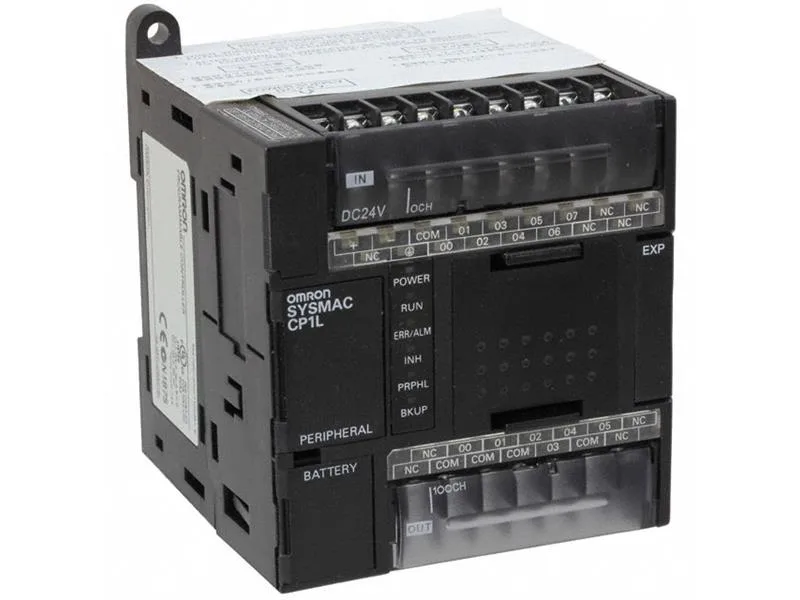

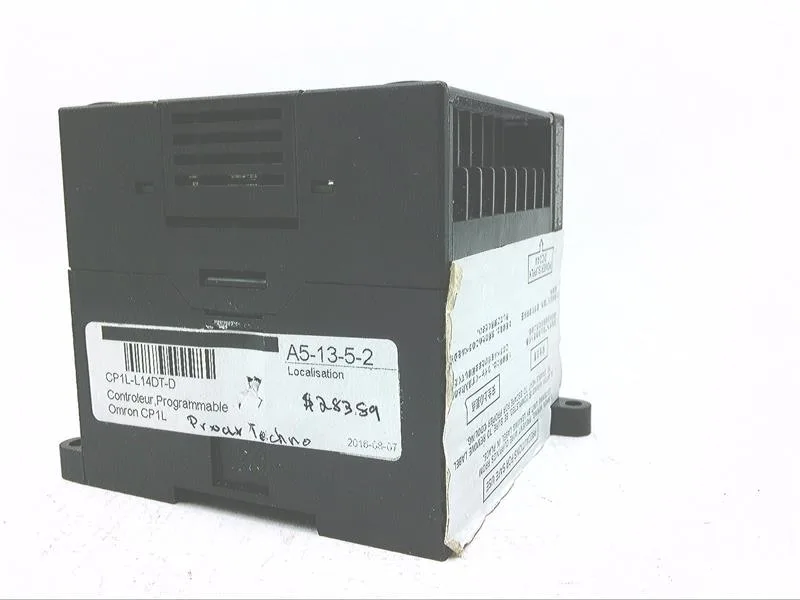

Omron CP1L-L14DT-D — PLCs (Programmable Logic Controllers)

Omron CP1L-L14DT-D PLC, 24 VDC, 8 DI/6 Solid State, Active

MPNCP1L-L14DT-D
Active

Omron CP1L series CP1L-L14DT-D PLC, 24 VDC, 8 digital inputs, 6 solid-state outputs, 32K words memory, expandable 1 module, battery backup.

$218.44 – $487.68Ref. price · indicative, final on quote
Omron CP1L-L14DT-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L14DT-D — Identification
ParameterValue
SeriesCP1L
CP1L-L14DT-D — I/O
ParameterValue
Inputs (count and type)8 - Digital
Outputs (count and type)6 - Solid State
Expandable1 Module Max
CP1L-L14DT-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-L14DT-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1L-L14DT-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.838 lb (380.11 g)
CP1L-L14DT-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-L14DT-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB, Option Cards Available

Product details

The Omron CP1L-L14DT-D is a 24 VDC-powered PLC with 8 digital inputs and 6 solid-state outputs. It runs on the CX-One software suite, holds 32K words of program memory, and can take one expansion module. Battery backup keeps the program in place when the panel loses power.

Mounts on DIN rail or chassis. Communications via USB; option cards add serial or Ethernet.

Frequently asked questions

Will CP1L-L14DT-D drop into a panel designed for CP1L-L14DT1-D?

Yes, the two are functionally identical — same supply voltage, same I/O count, same mounting. No rewiring or program changes needed.
