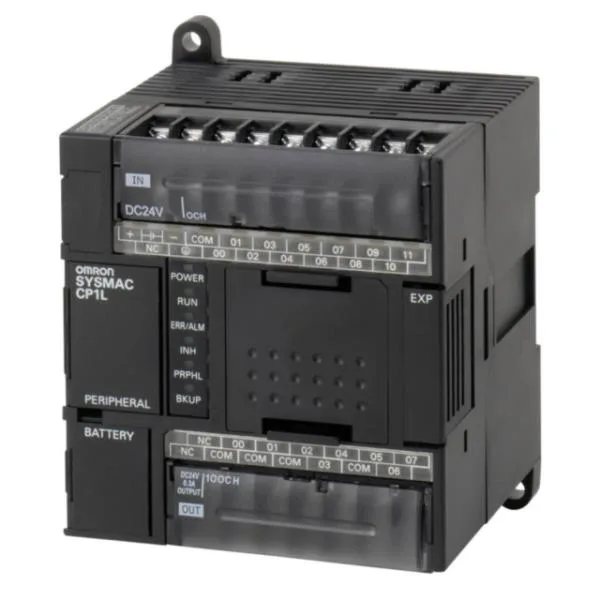

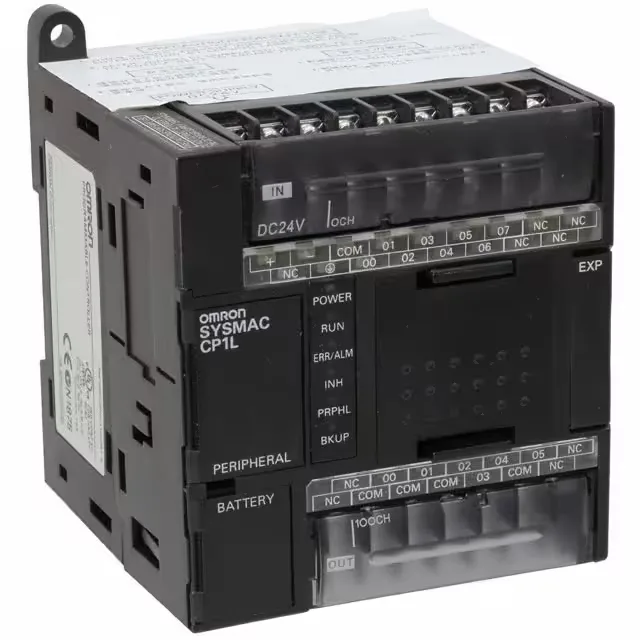

Omron CP1L-L14DT1-D — PLCs (Programmable Logic Controllers)

Omron CP1L-L14DT1-D PLC, 24VDC, 8 Inputs, 6 Outputs

MPNCP1L-L14DT1-D

Active

Omron CP1L Series PLC, 24VDC, 8 Digital Inputs, 6 Solid State Outputs, 32K Words Memory, USB.

$201.83 – $487.68Ref. price · indicative, final on quote

Add to RFQ

Omron CP1L-L14DT1-D datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L14DT1-D — Identification
Parameter	Value
Series	CP1L

CP1L-L14DT1-D — I/O
Parameter	Value
Inputs (count and type)	8 - Digital
Outputs (count and type)	6 - Solid State
Expandable	1 Module Max

CP1L-L14DT1-D — Electrical
Parameter	Value
Supply voltage	24VDC

CP1L-L14DT1-D — Environmental
Parameter	Value
Operating temperature range	0°C ~ 55°C

CP1L-L14DT1-D — Mechanical
Parameter	Value
Mounting type	Chassis Mount, DIN Rail
Weight	0.838 lb (380.11 g)

CP1L-L14DT1-D — Approvals
Parameter	Value
Approvals / certifications	CE, cULus, Lloyd, NK

CP1L-L14DT1-D — Other specifications
Parameter	Value
Features	Battery Backup
Software	CX-One
Memory size	32K Words
Display type	No Display
Communications	USB, Option Cards Available

Product details

Compact brick for standalone or distributed control

The Omron CP1L-L14DT1-D is a 24VDC PLC from the CP1L series, with 8 digital inputs and 6 solid-state outputs in a chassis/DIN-rail package. 32K words of program memory plus USB programming port make it a fit for standalone machine control or as a node over option card fieldbus.

Integration notes

Mounts on DIN rail or chassis plate. Ships with the 24VDC power connector and USB Type-B port. Programming via CX-One (included). Expansion is limited to one module — plan I/O budget before ordering. Approvals: CE, cULus, Lloyd, NK.
