Omron CP1L-L20DR-A — PLCs (Programmable Logic Controllers)

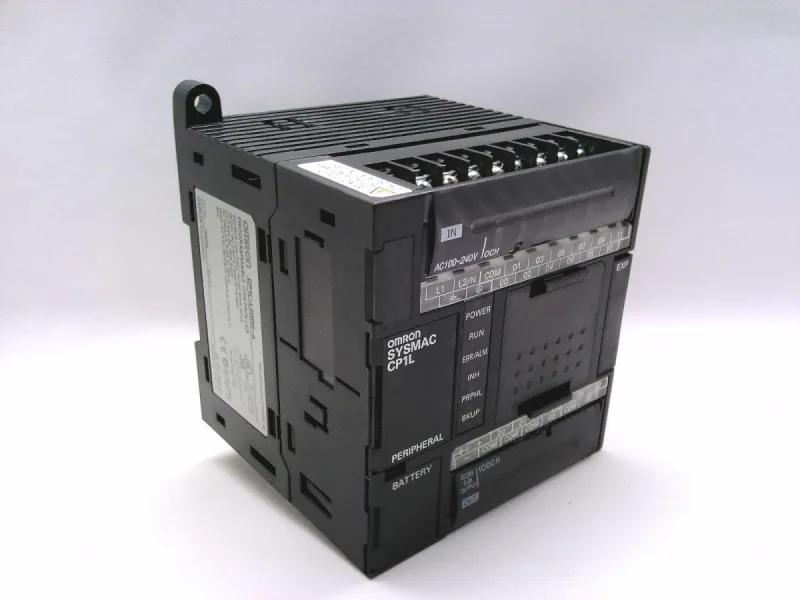

Omron CP1L-L20DR-A PLC, 12DI 8 Relay, 100-240VAC

MPNCP1L-L20DR-A
Active

Omron CP1L Series PLC, order code CP1L-L20DR-A, 12 digital inputs, 8 relay outputs, 100-240VAC supply, 32K words memory, battery-backed.

$379.10 – $560.55Ref. price · indicative, final on quote
Omron CP1L-L20DR-A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L20DR-A — Identification
ParameterValue
SeriesCP1L
CP1L-L20DR-A — I/O
ParameterValue
Inputs (count and type)12 - Digital
Outputs (count and type)8 - Relay
Expandable1 Module Max
CP1L-L20DR-A — Electrical
ParameterValue
Supply voltage100 ~ 240VAC
CP1L-L20DR-A — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1L-L20DR-A — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.838 lb (380.11 g)
CP1L-L20DR-A — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-L20DR-A — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB, Option Cards Available

Product details

What this PLC delivers

The Omron CP1L-L20DR-A is a compact PLC with 12 digital inputs and 8 relay outputs, running on 100-240VAC and supporting 32K words of program memory. Battery backup holds the program and data during a power loss — no re-download needed after a line bounce. The backplane is expandable by one module if the I/O count falls short. Program it with CX-One software over USB; option cards add fieldbus if the machine needs it. Operating range is 0°C to 55°C, so it fits most control cabinets without a climate stack.

The CP1L-L20DR-D is the same PLC except it runs on 24VDC instead of 100-240VAC and ships in bulk rather than a box. All other dimensions, mounting, I/O count, memory, and approvals are identical. If your panel is already wired for 24V, the D version saves a power-supply bill of material; if you need line-voltage convenience, the A version is the pick. Both fit the same chassis footprint and DIN-rail pattern, so a swap is a half-hour job.

Carries CE, cULus, Lloyd’s Register, and NK (Nippon Kaiji Kyokai) approvals — covers most industrial, marine, and machine-safety applications.

Frequently asked questions

What is the closest functional second-source to CP1L-L20DR-A?

The CP1L-L20DR-D is the closest sibling, sharing the same I/O count, memory, and form factor. The difference is supply voltage: 24VDC vs 100-240VAC. Verify your panel power before swapping.

Will CP1L-L20DR-A drop into a panel wired for CP1L-L20DR-D without rewiring?

Physically yes — same mounting and footprint. But the supply voltage differs (240VAC vs 24VDC), so you must change the power source. The I/O and communications wiring are identical.

What compliance documentation is available for CP1L-L20DR-A?

The PLC is approved for CE, cULus, Lloyd’s Register, and NK. Documentation includes the EU Declaration of Conformity and UL/cULus file numbers available through Omron support.
