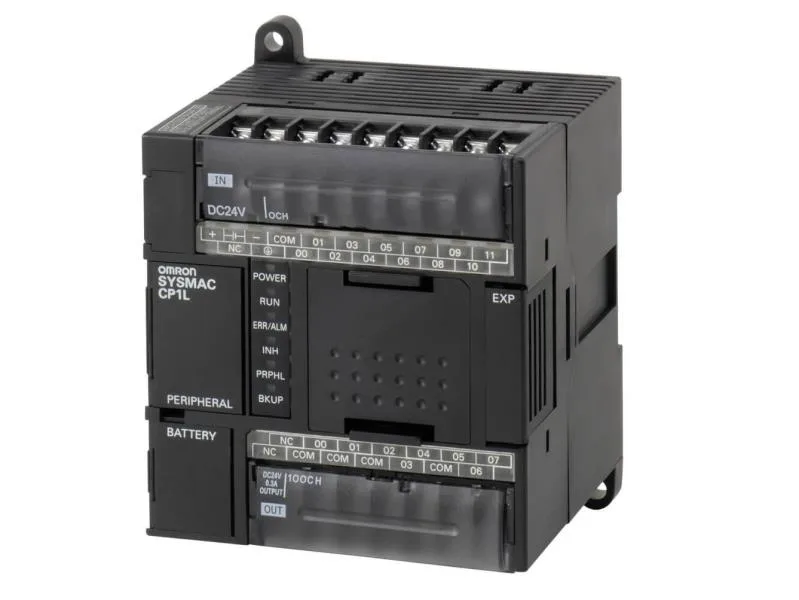

Omron CP1L-L20DT-A — PLCs (Programmable Logic Controllers)

Omron CP1L-L20DT-A PLC, 12 DI / 8 Solid State, 32K

MPNCP1L-L20DT-A

Active

Omron CP1L-L20DT-A, CP1L series, 20-point PLC, 12 digital inputs, 8 transistor outputs, 32K words memory, 100–240 VAC supply, USB port.

$339.09 – $560.55Ref. price · indicative, final on quote

Add to RFQ

Omron CP1L-L20DT-A datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L20DT-A — Identification
Parameter	Value
Series	CP1L

CP1L-L20DT-A — I/O
Parameter	Value
Inputs (count and type)	12 - Digital
Outputs (count and type)	8 - Solid State
Expandable	1 Module Max

CP1L-L20DT-A — Electrical
Parameter	Value
Supply voltage	100 ~ 240VAC

CP1L-L20DT-A — Environmental
Parameter	Value
Operating temperature range	0°C~55°C

CP1L-L20DT-A — Mechanical
Parameter	Value
Mounting type	Chassis Mount, DIN Rail
Weight	0.838 lb (380.11 g)

CP1L-L20DT-A — Approvals
Parameter	Value
Approvals / certifications	CE, cULus, Lloyd, NK

CP1L-L20DT-A — Other specifications
Parameter	Value
Features	Battery Backup
Software	CX-One
Memory size	32K Words
Display type	No Display
Communications	USB, Option Cards Available

Product details

Omron CP1L-L20DT-A PLC: 12 digital inputs, 8 solid-state outputs, 32K words memory, battery backup.

Mounting and expansion

Mounts on DIN rail or chassis directly. A single expansion module can be added to the right side for extra I/O or analog channels. The USB port provides quick program download and online monitoring via CX-One software.

Power and approvals

Runs from 100–240 VAC – no separate power supply module needed, simplifying panel wiring. Approved by CE, cULus, Lloyd, and NK – meets marine and industrial standards.

Lifecycle status

Omron lists this as an active product – no end-of-life or last-time-buy window. BOM-frozen designs can source it without obsolescence risk.

Frequently asked questions

What approvals does this PLC carry?

It is certified CE, cULus, Lloyd, and NK – suitable for industrial and marine applications.

Can the CP1L-L20DT-A replace a CP1L-L10DR-A without rewiring?

No. The L10DR-A has 6 digital inputs and 4 relay outputs vs 12 inputs and 8 transistor outputs on the L20DT-A. The output field wiring and I/O map must be reworked.
