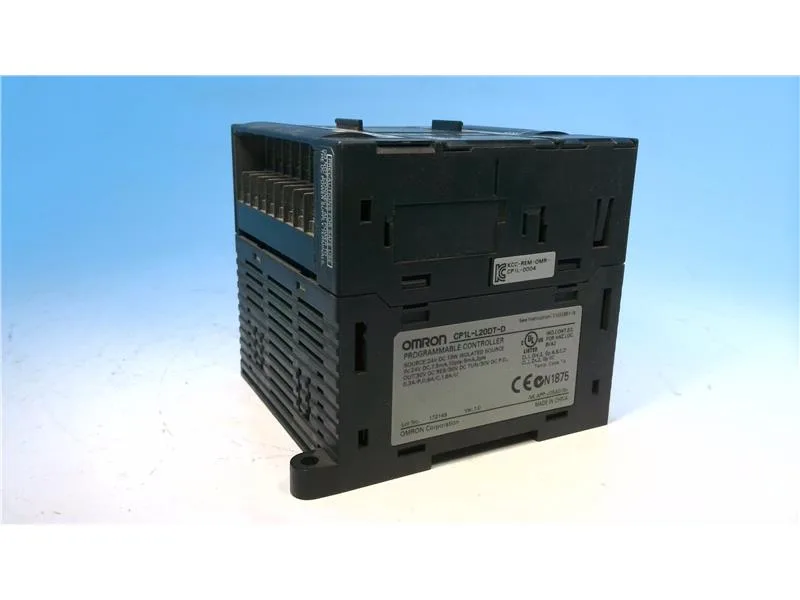

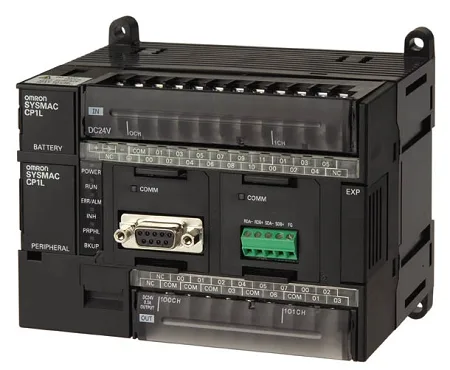

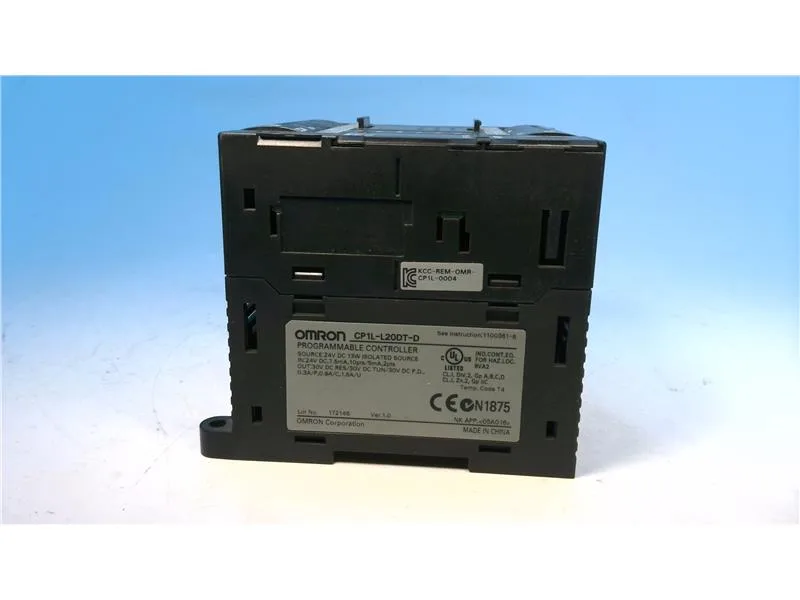

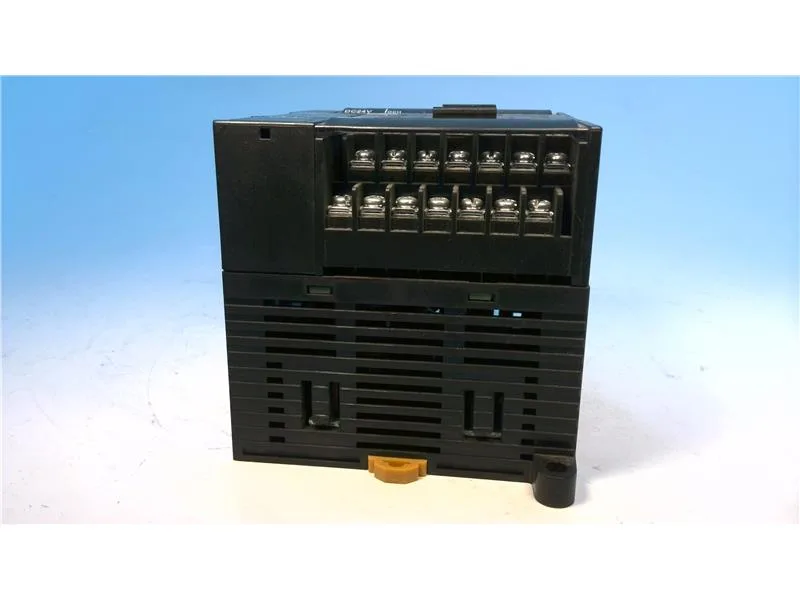

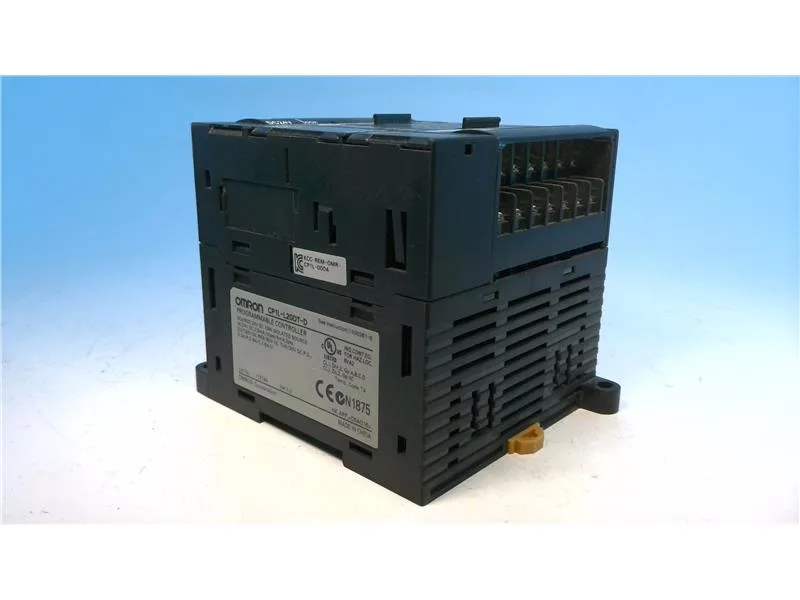

Omron CP1L-L20DT-D — PLCs (Programmable Logic Controllers)

Omron CP1L-L20DT-D PLC, 12 IN 8 OUT, 24VDC, 32K Words

MPNCP1L-L20DT-D
Active

Omron series CP1L compact PLC, 12 digital inputs, 8 solid-state outputs, 24 VDC, 32K words memory, USB, active.

$311.00 – $577.37Ref. price · indicative, final on quote
Omron CP1L-L20DT-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L20DT-D — Identification
ParameterValue
SeriesCP1L
CP1L-L20DT-D — I/O
ParameterValue
Inputs (count and type)12 - Digital
Outputs (count and type)8 - Solid State
Expandable1 Module Max
CP1L-L20DT-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-L20DT-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1L-L20DT-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.838 lb (380.11 g)
CP1L-L20DT-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-L20DT-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB, Option Cards Available

Product details

Compact PLC for stand-alone or small-machine control

The Omron CP1L-L20DT-D is a compact PLC from the CP1L series, offering 12 digital inputs and 8 solid-state outputs on a 24 VDC supply. With 32K words of program memory and USB plus option-card communications, it fits small-machine control or standalone automation tasks where a headless controller is sufficient.

Mounting and expansion notes

Mounts on DIN rail or chassis; accepts one expansion module. USB port enables programming via CX-One software; battery backup retains program and clock during power loss.

Frequently asked questions

What is the closest functional second-source for the CP1L-L20DT-D?

The CP1L-L20DT1-D is a functionally identical alternative, with the same CPU, I/O configuration, mounting, and 24 VDC supply.

What series does the CP1L-L20DT-D belong to?

It is part of the Omron CP1L series of compact PLCs.

Will the CP1L-L20DT-D drop into a panel originally specified for the CP1L-L20DT1-D?

Yes, the two are mechanically and electrically identical — same mounting, dimensions, I/O, supply, and approval ratings. No rewiring or repanelization is needed.
