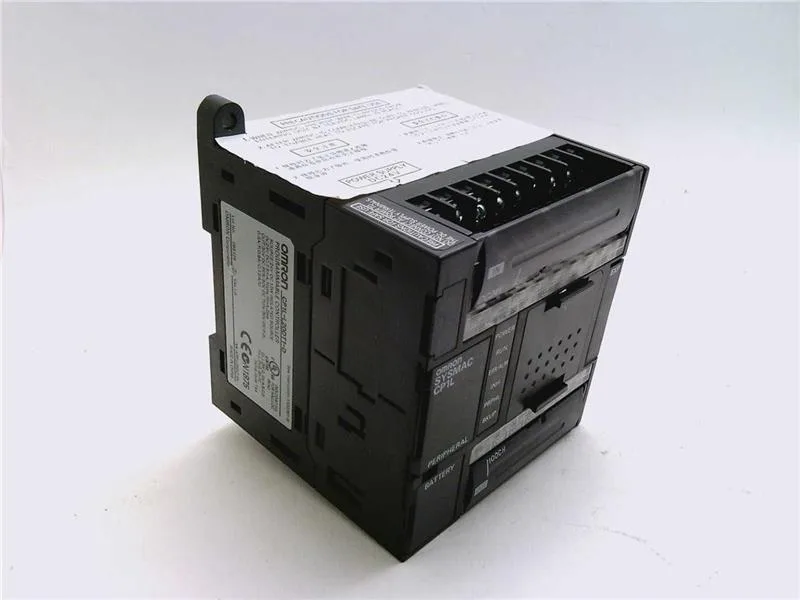

Omron CP1L-L20DT1-D — PLCs (Programmable Logic Controllers)

Omron CP1L-L20DT1-D PLC, 24VDC, 12 Inputs, 8 Transistor Outp

MPNCP1L-L20DT1-D
Active

Omron CP1L-L20DT1-D Programmable Logic Controller, CP1L series, 24VDC supply, 12 digital inputs, 8 solid-state outputs, 32K words memory, expandable 1 module, battery backup, CX-One software.

$414.58 – $577.37Ref. price · indicative, final on quote
Omron CP1L-L20DT1-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-L20DT1-D — Identification
ParameterValue
SeriesCP1L
CP1L-L20DT1-D — I/O
ParameterValue
Inputs (count and type)12 - Digital
Outputs (count and type)8 - Solid State
Expandable1 Module Max
CP1L-L20DT1-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-L20DT1-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1L-L20DT1-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight0.838 lb (380.11 g)
CP1L-L20DT1-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-L20DT1-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB, Option Cards Available

Product details

Omron CP1L-L20DT1-D is a 24VDC PLC from the CP1L series, packing 12 digital inputs and 8 solid-state (transistor) outputs into a chassis/DIN-rail mount package. Memory is 32K words, expandable by one module, and it runs on CX-One software. Battery backup keeps the program safe during power loss.

USB port handles programming out of the box; option card slot lets you add serial or fieldbus later. One expansion module max – keep that in mind if you need more than 12 inputs or 8 outputs. The no-display design saves panel space but means you'll rely on CX-One for diagnostics. Approved CE, cULus, Lloyd, NK – marine and industrial approvals covered.

Frequently asked questions

What's the difference between CP1L-L20DT1-D and CP1L-L20DR-D?

Output type: CP1L-L20DT1-D has 8 solid-state (transistor) outputs; CP1L-L20DR-D has 8 relay outputs. Everything else – inputs, memory, power, mounting, approvals – is identical.

Does the CP1L-L20DT1-D have battery backup?

Yes, battery backup is included to retain the program and data memory during power loss.

What software is used to program this PLC?

Omron CX-One software – handles programming, configuration, and diagnostics for the CP1L series.

What approvals does the CP1L-L20DT1-D carry?

It is approved by CE, cULus, Lloyd (marine), and NK (Nippon Kaiji Kyokai).

How many expansion modules can I add?

One expansion module maximum – the CP1L-L20DT1-D has a single expansion slot.
