Omron CP1L-M40DR-A — PLCs (Programmable Logic Controllers)

Omron CP1L-M40DR-A PLC, 24 In 16 Relay Out, 100-240VAC

MPNCP1L-M40DR-A

Active

Omron CP1L Series PLC, CP1L-M40DR-A, 24 Digital Inputs, 16 Relay Outputs, 100-240 VAC Supply, 32K Words Memory, Expandable 3 Modules.

$427.00 – $910.33Ref. price · indicative, final on quote

Add to RFQ

Omron CP1L-M40DR-A datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-M40DR-A — Identification
Parameter	Value
Series	CP1L

CP1L-M40DR-A — I/O
Parameter	Value
Inputs (count and type)	24 - Digital
Outputs (count and type)	16 - Relay
Expandable	3 Modules Max

CP1L-M40DR-A — Electrical
Parameter	Value
Supply voltage	100 ~ 240VAC

CP1L-M40DR-A — Environmental
Parameter	Value
Operating temperature range	0°C ~ 55°C

CP1L-M40DR-A — Mechanical
Parameter	Value
Mounting type	Chassis Mount, DIN Rail
Weight	1.5 lbs (680.4 g)

CP1L-M40DR-A — Approvals
Parameter	Value
Approvals / certifications	CE, cULus, Lloyd, NK

CP1L-M40DR-A — Other specifications
Parameter	Value
Features	Battery Backup
Software	CX-One
Memory size	32K Words
Display type	No Display
Communications	USB, Option Cards Available

Product details

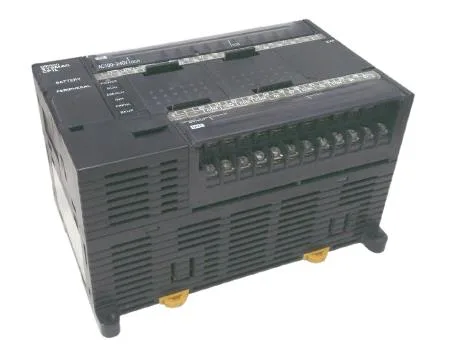

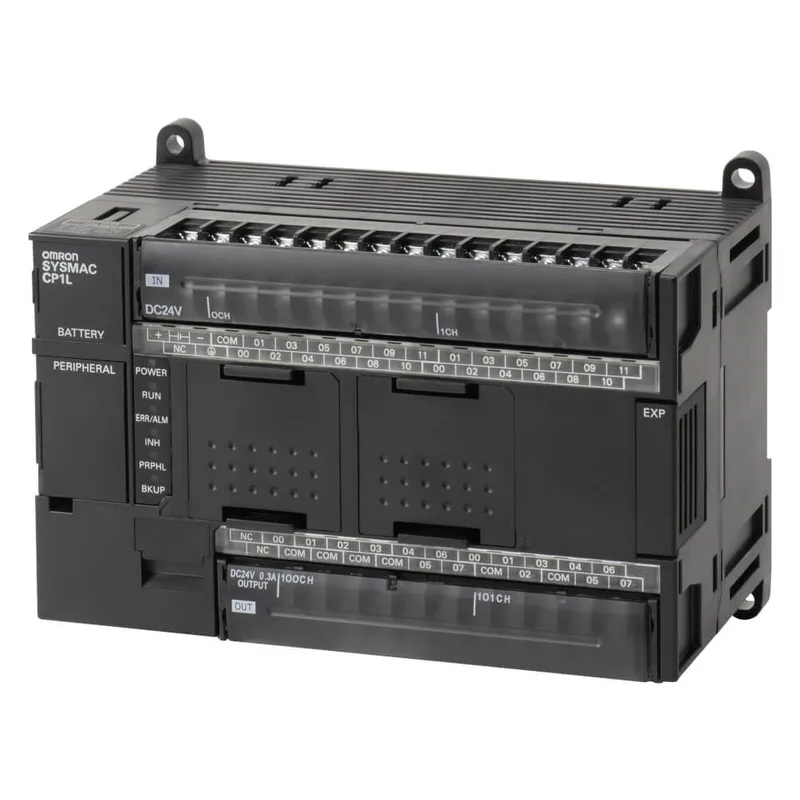

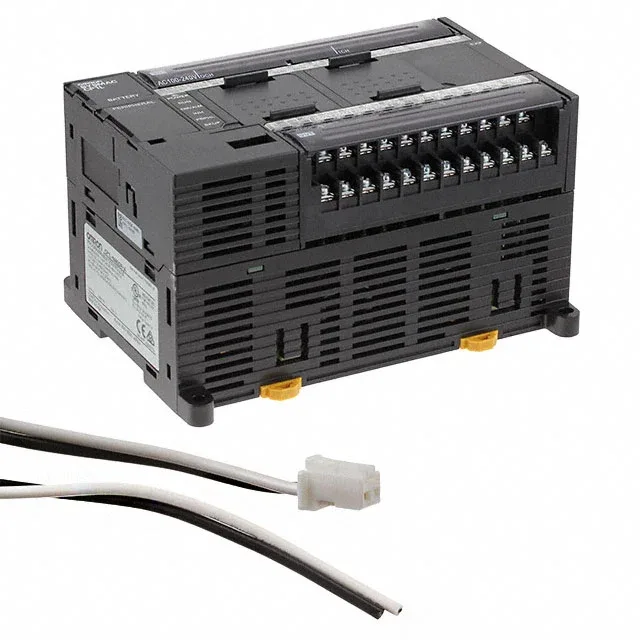

The Omron CP1L-M40DR-A is an actively produced micro PLC with 24 digital inputs and 16 relay outputs, running on a 100-240VAC supply. It belongs to the CP1L series, programmed with CX-One, and offers 32K words of memory. You can expand with up to three option modules via the expansion bus. Communication includes a USB port and slot for optional serial or fieldbus cards.

Mounting and expansion

Mounts on DIN rail or chassis panel, with expansion for up to three modules and battery backup to retain program and data.

Frequently asked questions

What is the functional difference between CP1L-M40DR-A and CP1L-M40DR-D?

Both have 24 digital inputs, 16 relay outputs, 32K memory, and the same physical footprint. The only difference is the supply voltage: -A runs on 100-240VAC, while -D requires 24VDC. Panel power design determines which fits.
