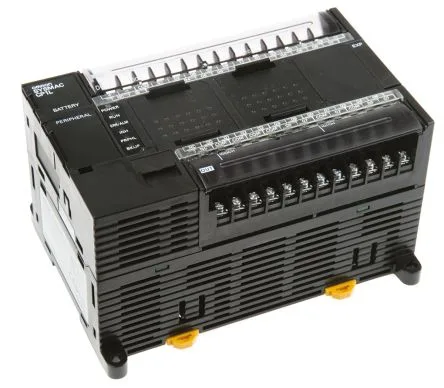

Omron CP1L-M40DR-D — PLCs (Programmable Logic Controllers)

Omron CP1L-M40DR-D PLC, 24 In 16 Relay Out, 24VDC

MPNCP1L-M40DR-D
Active

Omron CP1L Series PLC, CP1L-M40DR-D, 24 digital inputs, 16 relay outputs, 24 VDC supply, 32K words memory, 3 modules expandable.

$412.75 – $937.43Ref. price · indicative, final on quote
Omron CP1L-M40DR-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-M40DR-D — Identification
ParameterValue
SeriesCP1L
CP1L-M40DR-D — I/O
ParameterValue
Inputs (count and type)24 - Digital
Outputs (count and type)16 - Relay
Expandable3 Modules Max
CP1L-M40DR-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-M40DR-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1L-M40DR-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight1.5 lbs (680.4 g)
CP1L-M40DR-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-M40DR-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB, Option Cards Available

Product details

Compact 24-input PLC with relay outputs

The CP1L-M40DR-D is a compact PLC in the CP1L series, packing 24 digital inputs and 16 relay outputs on a 24 VDC supply. The 32K-word memory and CX-One software environment are standard across the CP1L family.

Relay vs transistor output siblings

For the same 24-input, 24 VDC platform, Omron offers two solid-state transistor output variants: CP1L-M40DT1-D and CP1L-M40DT-D (both 16 transistor outputs). The relay output on this model switches AC or DC loads at higher current capability than the transistor outputs, which are better suited for high-speed DC loads. Panel wiring and mounting are identical across all three. If the BOM was built around CP1L-M40DT1-D, this unit is a drop-in only if the downstream loads are compatible with relay switching (lower speed, higher inrush).

Frequently asked questions

What is the closest functional second-source to CP1L-M40DR-D?

The CP1L-M40DT1-D is the same compact PLC with identical inputs and supply voltage, but uses transistor outputs instead of relay. Verify load compatibility before substituting.

What is the series for CP1L-M40DR-D?

It belongs to the CP1L series.

Will CP1L-M40DR-D drop into a panel specified around CP1L-M40DT1-D?

Yes, because the chassis and mounting dimensions, supply voltage, and expansion capability are identical. Only the output type differs.

What compliance documentation does CP1L-M40DR-D have?

This PLC carries approvals from CE, cULus, Lloyd, and NK. The declaration of conformity covers these marks and is available on request.
