Omron CP1L-M40DT-D — PLCs (Programmable Logic Controllers)

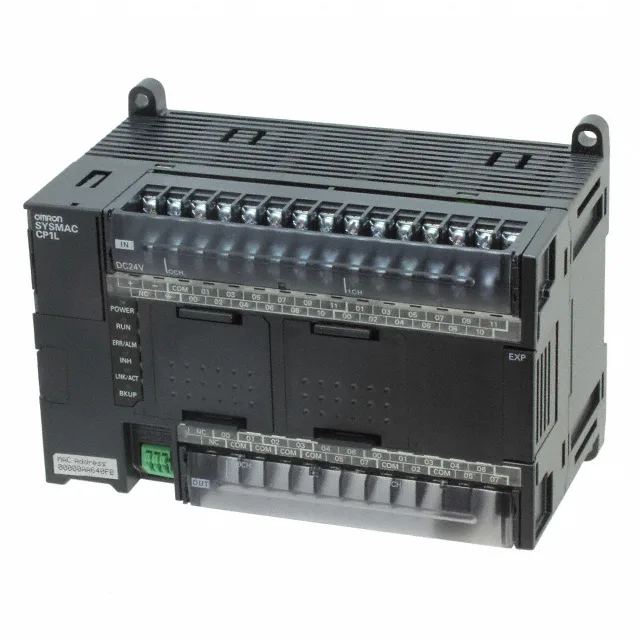

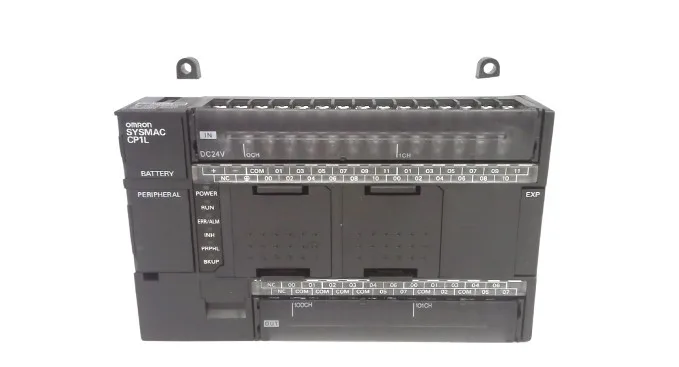

Omron CP1L-M40DT-D PLC, 24 IN 16 OUT 24V

MPNCP1L-M40DT-D
Active

Omron CP1L series compact PLC, 24 digital inputs, 16 solid-state outputs, 24 VDC supply, 32K words memory, expandable 3 modules, battery backup.

$463.00 – $910.33Ref. price · indicative, final on quote
Omron CP1L-M40DT-D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1L-M40DT-D — Identification
ParameterValue
SeriesCP1L
CP1L-M40DT-D — I/O
ParameterValue
Inputs (count and type)24 - Digital
Outputs (count and type)16 - Solid State
Expandable3 Modules Max
CP1L-M40DT-D — Electrical
ParameterValue
Supply voltage24VDC
CP1L-M40DT-D — Environmental
ParameterValue
Operating temperature range0°C ~ 55°C
CP1L-M40DT-D — Mechanical
ParameterValue
Mounting typeChassis Mount, DIN Rail
Weight1.5 lbs (680.4 g)
CP1L-M40DT-D — Approvals
ParameterValue
Approvals / certificationsCE, cULus, Lloyd, NK
CP1L-M40DT-D — Other specifications
ParameterValue
FeaturesBattery Backup
SoftwareCX-One
Memory size32K Words
Display typeNo Display
CommunicationsUSB, Option Cards Available

Product details

The Omron CP1L-M40DT-D is a compact machine controller with 24 digital inputs and 16 solid-state outputs on 24 VDC. It runs on CX-One, holds 32K words of program memory, and expands up to three additional modules. The solid-state outputs switch faster than relay variants and work best in high-cycle or quiet applications — no mechanical wear, no coil noise. Battery backup retains RAM and real-time clock on power loss. No display — programming and monitoring via USB or optional communication card.

Frequently asked questions

What approvals does the CP1L-M40DT-D carry?

It is approved by CE, cULus, Lloyd's Register, and NK (Nippon Kaiji Kyokai), covering industrial safety, marine, and regulatory compliance.
