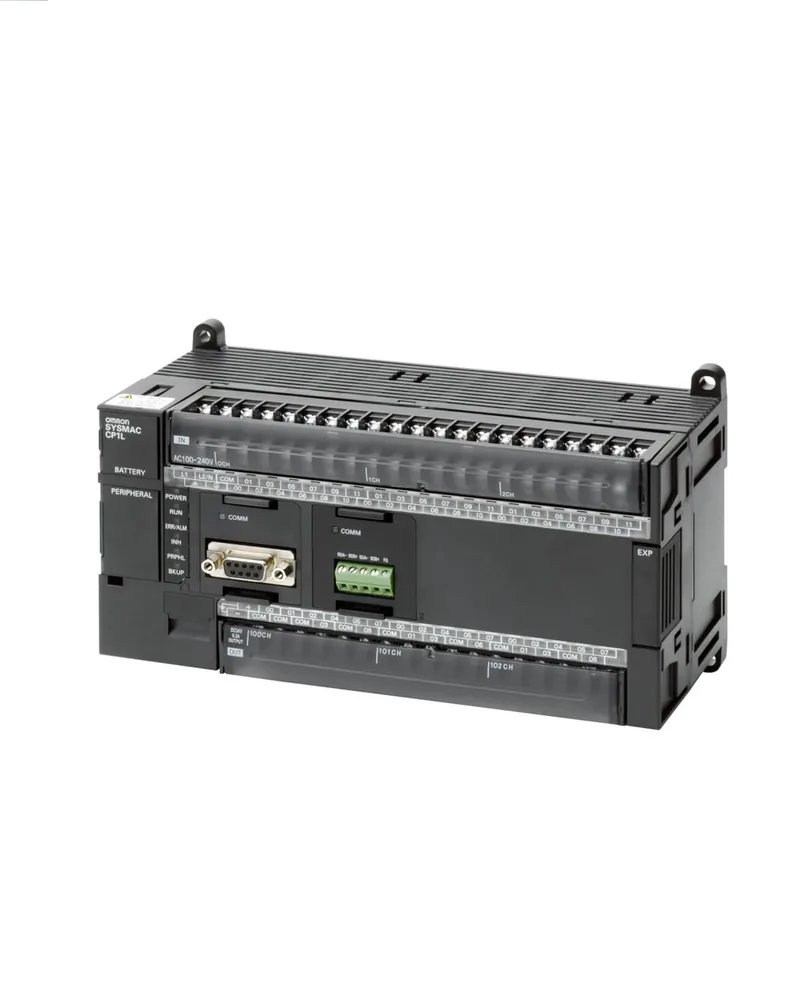

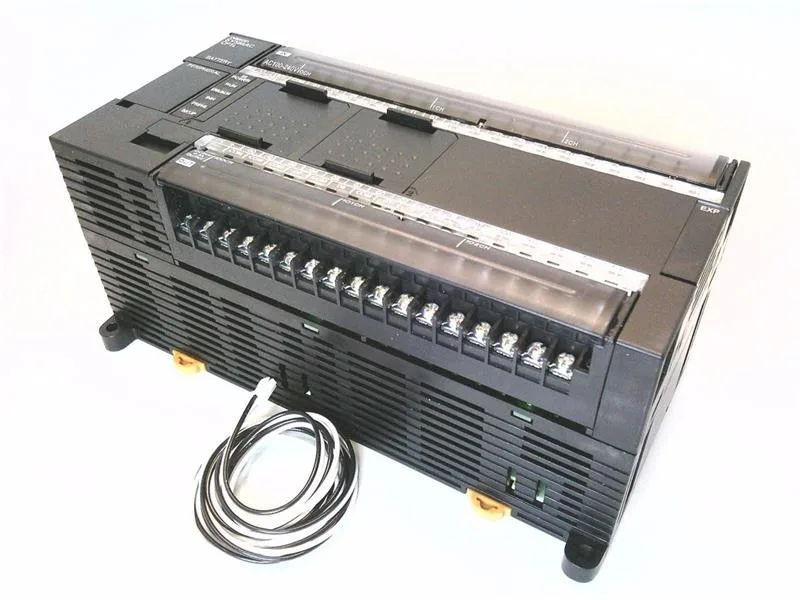

The CP1L-M60DR-A is a compact PLC from Omron's CP1L series, built for mid-range control applications that need both a 36-point digital input bank and 24 relay outputs capable of handling AC loads or higher inrush current without external interposing relays. The supply range of 100-240 VAC matches the common control-transformer tap, so it draws from the panel's existing power feed. Program and data store in 32K words of memory, and the unit expands up to three additional modules over the backplane bus. Programming is done in CX-One; CX-Programmer is the ladder/logic editor within that suite.
What the key ratings mean for fit
The unit has 36 digital inputs and 24 relay outputs. Supply is 100-240 VAC, operating temperature is 0-55 °C.
