Omron CP1L-M60DR-D

Omron CP1L-M60DR-D PLC, 36 Inputs 24 Relay Outputs, 24VDC

MPN CP1L-M60DR-D
Active

Omron CP1L series PLC, order code CP1L-M60DR-D, 36 digital inputs, 24 relay outputs, 24 VDC supply, 32K words memory, expandable 3 modules.

$485.00 – $1,235.45 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

CP1L-M60DR-D specifications
ParameterValue
SeriesCP1L
Display typeNo Display
Supply voltage24 VDC
ProtocolOption Cards Available, USB
MountingChassis Mount, DIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight1.8 lbs (816.5 g)
PackageBulk

Product details

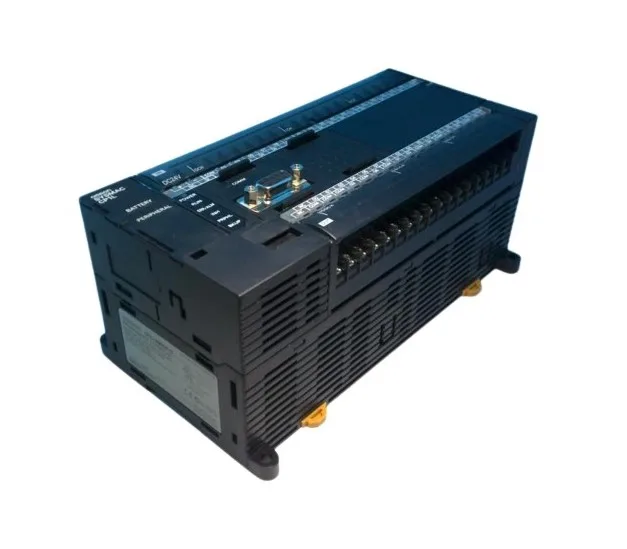

The Omron CP1L-M60DR-D is a 24 VDC brick with 36 digital inputs and 24 relay outputs. It is expandable to three extra modules. Memory sits at 32K words, battery-backed, programmed via CX-One. Mounts on DIN rail or panel.

Relay vs solid-state — pick the right output leg

The CP1L-M60DR-D uses relay outputs; its direct sibling CP1L-M60DT-D uses solid-state. If your panel drives contactors, solenoids, or any inductive load with a healthy inrush, stick with the relay version. Solid-state is faster but less forgiving of surge and welding. Same 36 inputs, same memory, same expandability — the only difference is the output type and how it handles dirty power.

MPN
CP1L-M60DR-D
