The Omron CP1L-M60DT1-D is a compact PLC from the CP1L series, rated for 24 VDC operation. It carries 60 built-in I/O — 36 DC inputs and 24 transistor outputs — which covers the discrete I/O for many mid-sized standalone machines without forcing expansion from day one. Battery backup and a real-time clock are standard, so the program and time-stamp capability survive a power loss without extra modules. Communication is via USB plus two option ports, allowing you to add serial or Ethernet interfaces while keeping the USB port for programming. Total I/O expands to 180 points using up to three expansion boards and two option modules. This headroom matters when the BOM needs to accommodate future I/O growth without swapping the CPU.

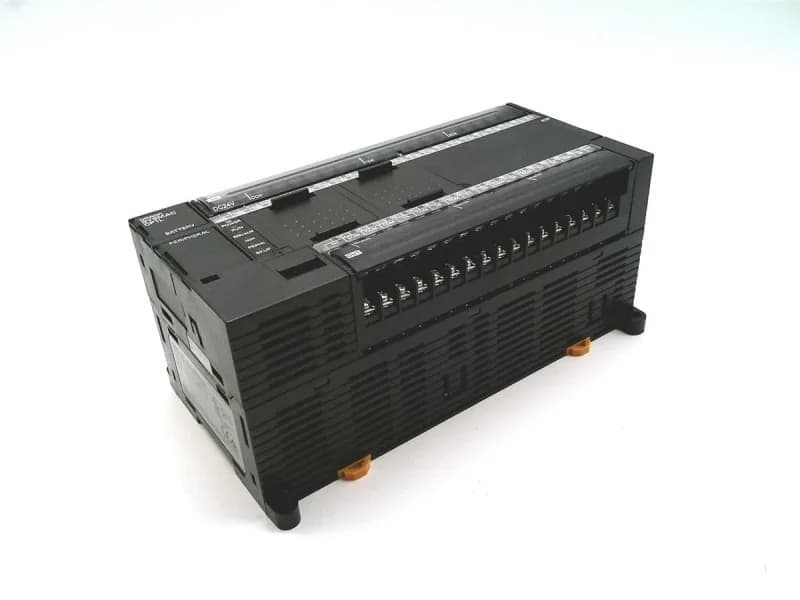

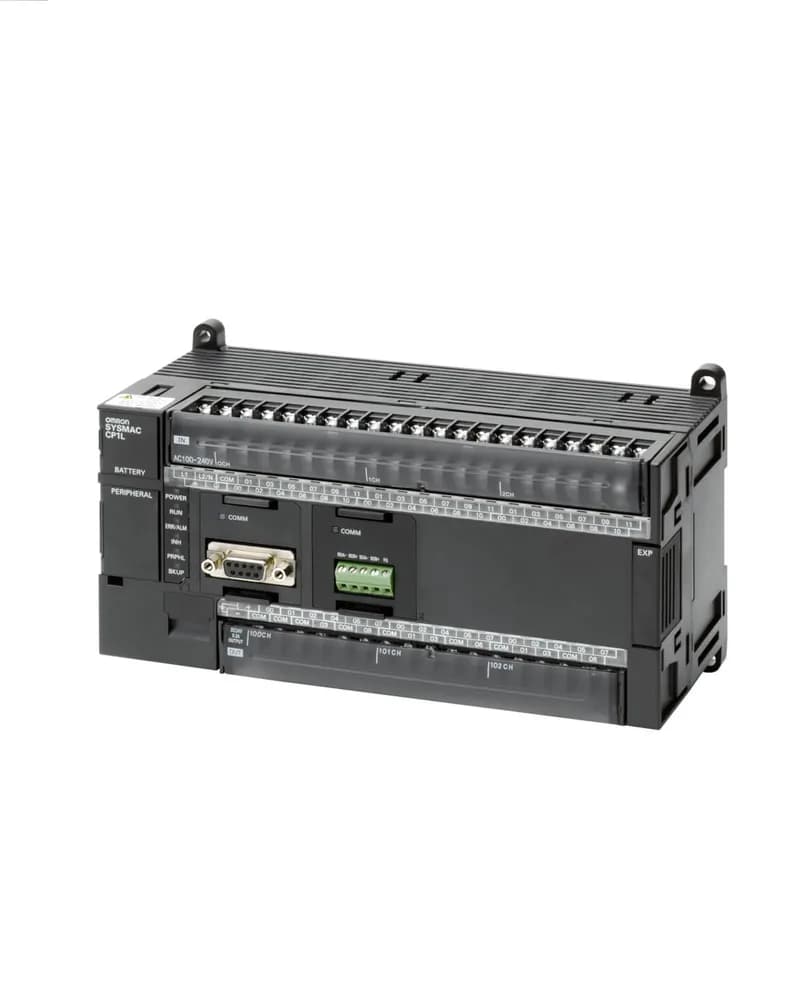

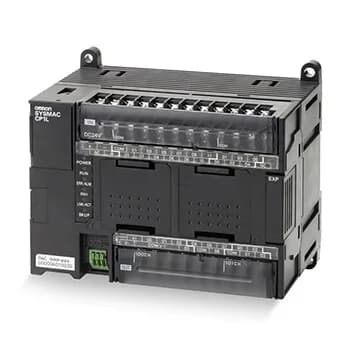

Omron CP1L-M60DT1-D PLC, 36 DC In / 24 Trans Out, 60 I/O
MPNCP1L-M60DT1-D
Active
Omron CP1L Series PLC, CP1L-M60DT1-D, 24 VDC supply, 36 DC inputs, 24 transistor outputs, battery backup, real-time clock, USB + 2 option ports.
$491.00 – $1,235.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Input type | DC |
| Output signal | Transistor |
| Supply voltage | 24 VDC |
| Communications | USB, 2 Option Port |
| Built-in i (O) | 60 |
| Battery backup | Yes |
| Total i (O capacity) | 180 |
| Number of expansion IO | 3 |
| Number of option modules | 2 |
| Real-time clock, calendar | Yes |
Product details
Frequently asked questions
Can the CP1L-M60DT1-D replace a CP1E-NA20DT1-D in an existing panel?
No — the CP1L-M60DT1-D has 60 built-in I/O (versus 20), a different footprint, and a different communication port layout (two option slots vs one). Rewiring and panel resizing would be required.
MPN
CP1L-M60DT1-D
