Omron CP1W-20EDR1 — PLCs (Programmable Logic Controllers)

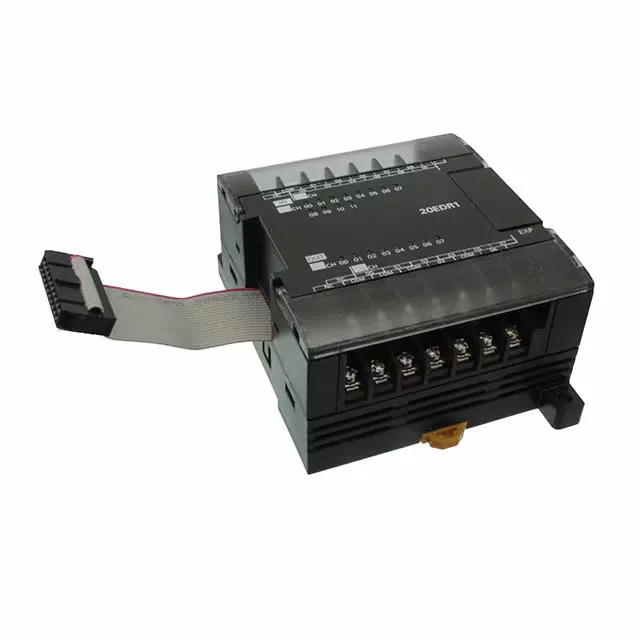

Omron CP1W-20EDR1 I/O Module, 12 Digital Inputs

MPNCP1W-20EDR1
Active

Omron CP1W series, Type Input, Output (I/O) Module, 12 Digital Inputs, 8 Relay Outputs, DIN Rail Mount, Screw Terminal, CE, CSA, Lloyd, NK, UL approved.

$95.00Ref. price · indicative, final on quote
Omron CP1W-20EDR1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1W-20EDR1 — Identification
ParameterValue
SeriesCP1W
CP1W-20EDR1 — I/O
ParameterValue
Inputs (count and type)12 - Digital
Outputs (count and type)8 - Relay
CP1W-20EDR1 — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
CP1W-20EDR1 — Approvals
ParameterValue
Approvals / certificationsCE, CSA, Lloyd, NK, UL
CP1W-20EDR1 — Other specifications
ParameterValue
TypeInput, Output (I/O) Module

Product details

I/O Count and Wiring

The Omron CP1W-20EDR1 is an I/O expansion module carrying 12 digital inputs and 8 relay outputs — the relay outputs handle inductive loads like contactors and solenoid valves common in refrigeration and cold-chain controls without external snubbers on small coils. Termination is via screw terminals, so the module lands directly on a DIN rail in the panel and the field wiring terminates without a separate terminal block.

PLC Compatibility and System Fit

This module is listed for use with CJ and CP1 series PLCs. The 12-input / 8-output split covers a typical mix of sensor feedback and relay-driven actuators; the relay outputs are rated for general-purpose switching and suit applications where the load current is within the relay contact rating.

Production Status and Sourcing

Approvals include CE, CSA, Lloyd, NK, and UL, covering European, North American, and marine-class installations.

Frequently asked questions

Is the CP1W-20EDR1 compatible with the CP1L PLC?

Yes, the CP1W-20EDR1 is listed for use with CP1 series PLCs, which includes the CP1L.

Does the CP1W-20EDR1 have 12 inputs and 8 relay outputs?

Yes, it has 12 digital inputs and 8 relay outputs.

What is the difference between CP1W-20EDR1 and CP1W-20EDT1?

The CP1W-20EDR1 uses relay outputs, while the CP1W-20EDT1 uses transistor (sourcing) outputs. Relay outputs handle AC/DC loads and inductive kick better; transistor outputs switch faster and last longer in high-cycle applications.

MPN
CP1W-20EDR1
