Omron CP1W-20EDT — PLCs (Programmable Logic Controllers)

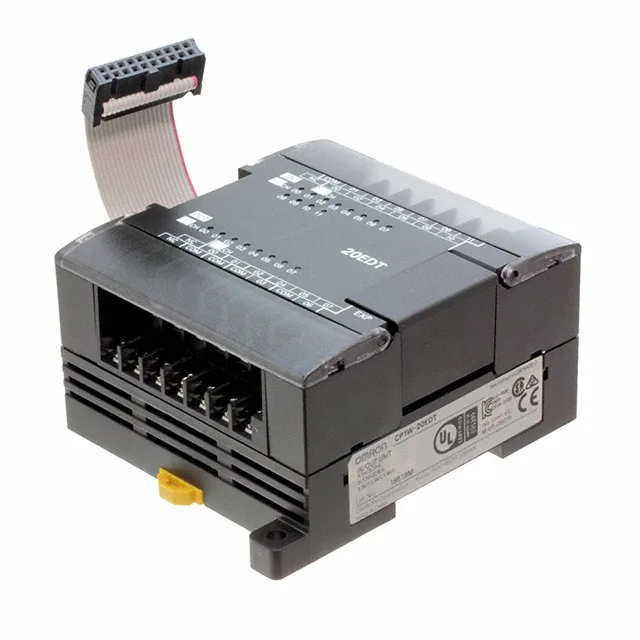

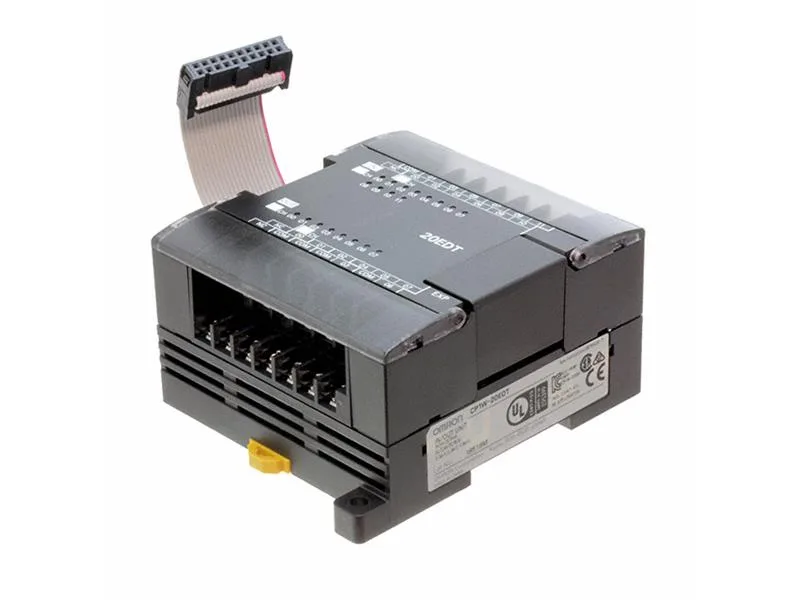

Omron CP1W-20EDT I/O Module, 12 Digital Inputs 8 Solid State

MPNCP1W-20EDT
Active

Omron CP1W Series, Type Input, Output (I/O) Module, CP1W-20EDT, 12 Digital Inputs, 8 Solid State Outputs, DIN Rail, Screw Terminal, CE, CSA, Lloyd, NK, UL.

$104.89Ref. price · indicative, final on quote
Omron CP1W-20EDT datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

CP1W-20EDT — Identification
ParameterValue
SeriesCP1W
CP1W-20EDT — I/O
ParameterValue
Inputs (count and type)12 - Digital
Outputs (count and type)8 - Solid State
CP1W-20EDT — Mechanical
ParameterValue
Mounting typeDIN Rail
Termination styleScrew Terminal
CP1W-20EDT — Approvals
ParameterValue
Approvals / certificationsCE, CSA, Lloyd, NK, UL
CP1W-20EDT — Other specifications
ParameterValue
TypeInput, Output (I/O) Module

Product details

I/O module for CP1/CJ series — 12 in, 8 out, solid state

Omron CP1W-20EDT is a mixed I/O module that gives a CJ or CP1 series CPU 12 digital inputs and 8 solid-state outputs in one DIN-rail unit. Screw terminals keep wiring consistent with the rest of the I/O bank.

Compliance documentation on file

Shipment includes CE, CSA, Lloyd, NK, and UL marks — covers most industrial and marine classification requirements. For procurement files, the nameplate and declaration of conformity match the listed agencies at product level.

Mounts on DIN rail with screw terminals. Provides 8 solid-state outputs.

Frequently asked questions

What is the closest functional second-source?

CP1W-20EDT1 is a functional equivalent — identical 12 digital inputs, 8 solid-state outputs, same approvals and mounting. It drops into the same panel without rewiring.

What are the key specifications?

Type: Input, Output (I/O) Module. 12 digital inputs, 8 solid-state outputs. Mounts on DIN rail with screw terminals. Approved by CE, CSA, Lloyd, NK, and UL. Compatible with CJ and CP1 series PLCs.

Will CP1W-20EDT drop into a panel specified for CP1W-20EDT1?

Yes, CP1W-20EDT and CP1W-20EDT1 share the same electrical and mechanical specifications. No rewiring or panel changes are needed.

What compliance documentation is available?

The module carries CE, CSA, Lloyd, NK, and UL approvals. A declaration of conformity covering these marks is provided with the product.

MPN
CP1W-20EDT
