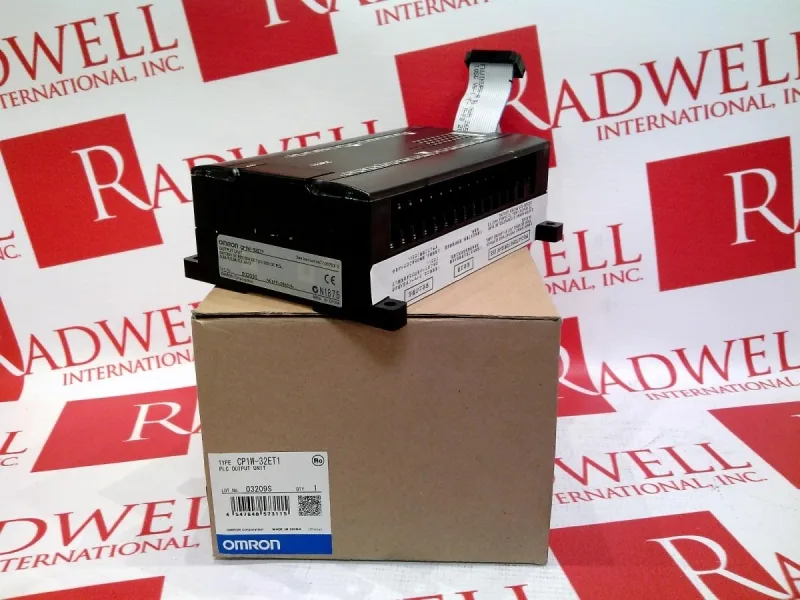

Omron CP1W-32ET1 Output Module, 32 Solid State, Screw Terminal, DIN Rail, Active.
| Parameter | Value |
|---|---|
| Series | CP1W |
| Parameter | Value |
|---|---|
| Outputs (count and type) | 32 - Solid State |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Screw Terminal |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, Lloyd, NK |
| Parameter | Value |
|---|---|
| Type | Output Module |
Omron CP1W-32ET1 is a 32-point solid-state output module for the CP1 and CJ series PLCs. It mounts on DIN rail and terminates via screw terminals – no tool-less spring clamps here, so factor screwdriver time during panel wiring.
Mounts on DIN rail; allow space for screwdriver access to the screw terminals. Works with any CP1 CPU or CJ expansion backplane.
The CP1W-32ET is functionally identical – same 32 solid-state outputs, screw terminals, and approvals. It is a direct drop-in replacement.
It is an Output Module.
It belongs to the CP1W series.
Yes, the CP1W-32ET1 is a drop-in replacement for CP1W-32ET. Same terminals, same output count, same dimensions.
The module carries CE, Lloyd, and NK approvals.
